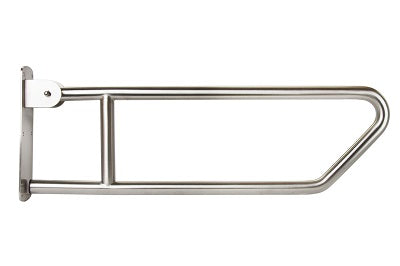

AS1428.1 pull down grab rail with a click-lock system to prevent the rail sliding down.

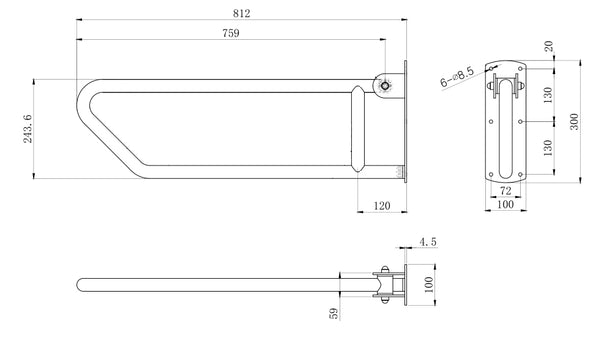

This 812mmL x 300mmH rail is built from 1.2mm #304 stainless steel tubing (32mmØ) with a heavier 4.5mm formed #304 stainless steel mounting bracket and brace, finished in satin stainless steel. The grab rail measures 243.6mmH from outer edge to edge, and the mounting bracket is 100mmW x 300mmH x 30-50mmD x 4.5mmT with 6 mounting holes at 8.5mmØ.
A click-lock system holds the rail in position and prevents it sliding down in use, and the unit stores upright, seamless welded and polished. Its materials and construction meet AS1428.1 force requirements, able to withstand a force of 1100Nm applied at any position and direction without deformation.
Features:
- 1.2mm #304 stainless steel tubing, 32mmØ
- 4.5mm formed #304 stainless steel mounting bracket and brace
- Satin stainless steel finish
- 812mmL x 300mmH overall, 243.6mmH grab rail
- Click-lock system prevents rail sliding down
- Seamless welded and polished, stores upright
- AS1428.1 compliant when installed per guidelines (1100Nm force rated)
SKU: MLR55_SS
