Specification
| Material | #304 Stainless Steel - 32mmØ |
| Finish | Satin Stainless Steel |
| Mounting | Concealed Fix - 78mmØ Mount |
| 300mm C to C | |

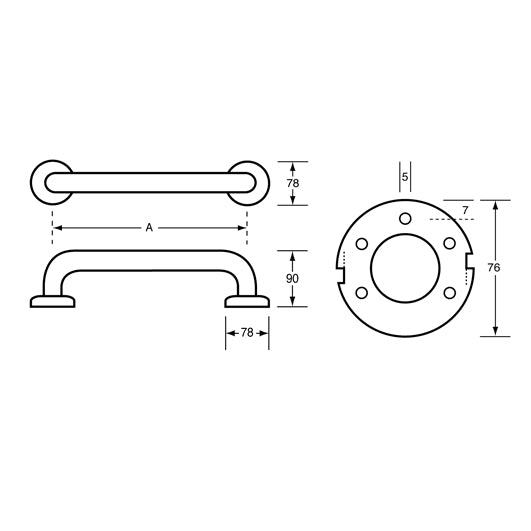

| Please Note: A Indicated On The Line Drawing Refers To The Length, Please See Below And Specify Accordingly | |
| Specify | ML327_1SS - A= 300mm C to C |
| ML328SS - A= 350mm C to C | |
| ML329SS - A= 400mm C to C | |
| ML330_1SS - A= 450mm C to C | |
| ML331_1SS - A= 600mm C to C | |
| ML332SS - A= 750mm C to C | |
| ML338SS - A= 800mm C to C | |
| ML333_1SS - A= 900mm C to C | |
| ML334_1SS - A= 1000mm C to C | |
| ML335SS - A= 1200mm C to C | |
| ML336SS - A= 1500mm C to C | |
| Note |
*This unit is accessible compliant when installed in accordance with AS1428.1. guidelines. *It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meet AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. |
