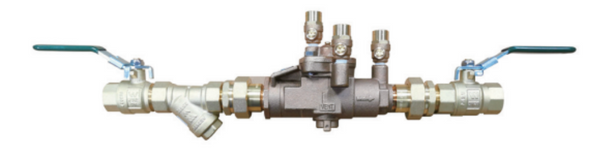

The AVG (Watts) Series 009 RPZ backflow preventer kit is a complete 15mm reduced pressure zone assembly — the device pre-fitted with lockable isolation ball valves, an inlet strainer and unions for a straight in/out installation. It protects the potable water supply from backflow contamination on connections such as irrigation, fire services and commercial equipment.
The compact bronze body uses two independent check valves, captured springs and a replaceable relief valve seat, with a single top-entry access cover for the whole check module — service work doesn't require special tools or removing the unit from the line.
Features
- Compact, space-saving design
- Bronze body construction for durability
- Large body passages for low pressure drop
- Top-entry single access cover, modular check construction
- No special tools required for servicing
- Captured springs for safe maintenance
- Internal relief valve reduces installation clearance needed
- Replaceable seats for economical repair
- Screwdriver-slotted ball valve test cocks
- Lockable isolation ball valves, strainer and unions included
Performance Specifications
- Working temperature: 0.5°C to 90°C
- Maximum working pressure: 1400kPa
- Design standard: AS/NZS 2845.1
Also available in 20mm, 25mm, 32mm, 40mm and 50mm.
SKU: 009-015-ULBS | Brand: AVG — Australian Valve Group, a Watts Water Technologies brand.
