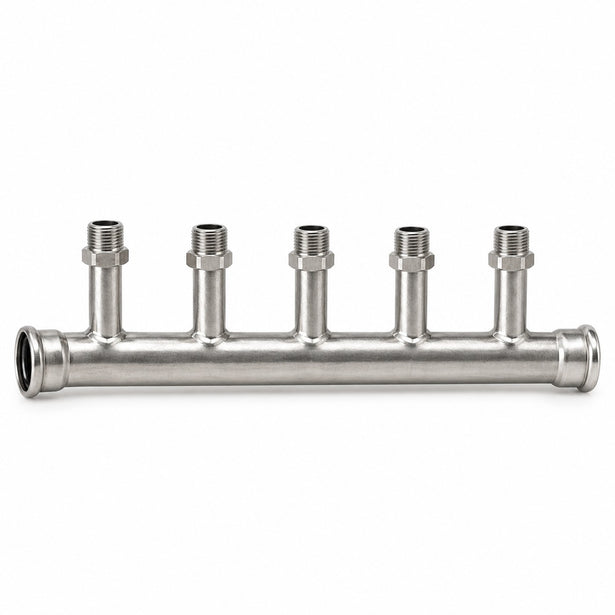

The 316 stainless press manifold puts five male BSP outlets on a single press run. It is used for distribution headers on hot and cold water, compressed air and process lines, where it replaces five separate tees and the joints between them.
Specifications
| Connection | Press x Press run, 5 Male BSP outlets |
| Sizes | 28mm x 5 x 1/2" BSP, 28mm x 5 x 3/4" BSP, 35mm x 5 x 1/2" BSP, 35mm x 5 x 3/4" BSP, 42mm x 5 x 1/2" BSP, 42mm x 5 x 3/4" BSP, 54mm x 5 x 1/2" BSP, 54mm x 5 x 3/4" BSP |
| Fitting material | 316L stainless steel (1.4404) |
| Press profile | M-profile, use M-profile jaws only |
| Standard seal | EPDM, black, potable water, -20°C to +110°C |
| Tube | 304 or 316 metric stainless tube to AS 5200.053 |
| Max working pressure | 1600 kPa at all sizes, up to 6000 kPa at 15mm and 22mm (potable water, 25°C, size and tool dependent) |
Features
- Grade 316L stainless steel, suited to corrosive, coastal and hygiene-critical installations
- M-profile press socket for a fast, flame-free joint with no hot work permit
- Standard black EPDM ring seal for potable water; yellow NBR (gas) and green FKM (oils and fuels) seals available separately
- Metric sizing to suit 304 or 316 stainless tube to AS 5200.053
- Part of the Standard Press stainless system, with matching fittings, valves, seals and supports
Compliance
Fittings are manufactured from 316L stainless steel for use with metric stainless tube to AS 5200.053. Potable water contact materials comply with AS/NZS 4020. Install to AS/NZS 3500 for water services and AS/NZS 5601.1 for gas, with the correct ring seal fitted for the service. Pressure ratings vary by size and press tool, so check with our team before specifying for gas, steam, fire or high pressure applications.
