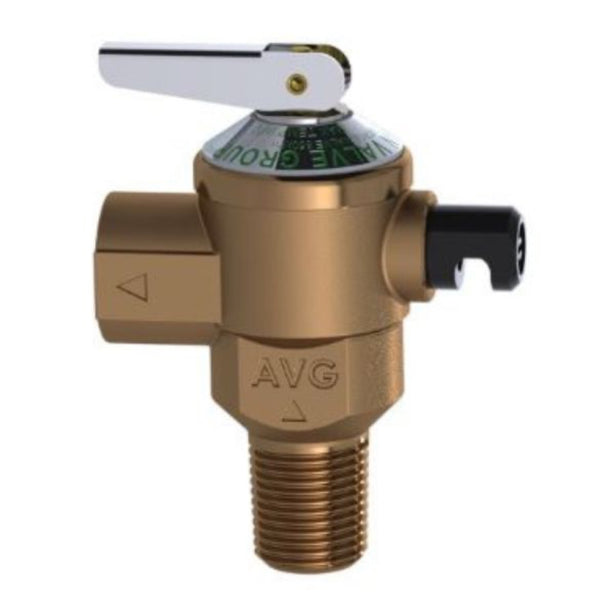

The AVG ECV15-850-LF is a 15mm (1/2") lead free expansion control valve, colour-coded green for its 850kPa setting, designed to absorb the pressure increase caused by thermal expansion in a hot water storage system. Fitting an ECV to the cold water inlet prevents hot water discharging from the pressure temperature relief (PTR) valve on every heating cycle — protecting the PTR valve, saving energy, and extending the life of the whole system.
Both PTR and ECV valves are safety devices and should be replaced every 4 years. Where the cold water supply pressure exceeds 80% of the PTR valve's rated set pressure, AS/NZS 3500.4 requires a pressure limiting valve on the cold inlet as well — most homes and light commercial sites at mains pressure need one fitted regardless.
Features
- 15mm (1/2") BSP connection
- Set pressure: 850kPa (green)
- Expansion capacity: 20kW
- Forged DR brass body, lead free, stainless steel lever action
- High-temperature silicone boot protects the spring
- High-temperature seal for flexibility at elevated temperatures
- WaterMark certified — AS1357.1 Lic 2639
- Complies with AS4020 (drinking water contact)
- ISO 9001 / ISO 9002 quality assurance
Also available in the ECV15 range at 700kPa, 1200kPa and 1400kPa, and in 20mm (ECV20) for higher-capacity systems.
SKU: ECV15-850-LF | Brand: AVG — Australian Valve Group, a Watts Water Technologies brand.
