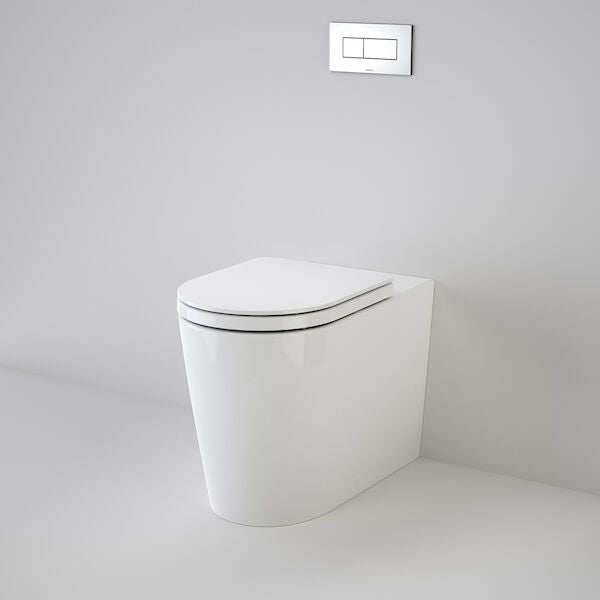

The Caroma Liano CleanFlush Invisi Series II Easy Height Wall Faced Toilet Suite pairs a raised 435mm back inlet pan with a concealed in-wall cistern, giving a clean, uncluttered finish with extra seated comfort. It suits residential ensuites, aged care, independent living and commercial washrooms where an ambulant-compliant suite is specified.
The pan uses Caroma's patented CleanFlush rimless design. With no hidden rim, the flush water washes the whole bowl and there is nowhere for bacteria to build up, so cleaning is quicker and easier. The smooth, fully contoured sides finish the pan cleanly against the wall.
The Invisi Series II cistern sits inside the wall cavity and comes with Caroma's Adjustable Flushpipe. It can be installed in-wall, in-duct, in-ceiling or undercounter (undercounter needs fixed flushpipe 237222, sold separately). A universal trap pan and Uni-Orbital Connector suit S or P trap set-outs, with up to 50mm radius of adjustment to line up with the existing waste.
The suite is supplied with the Liano quick release, soft close double flap seat with GermGard antimicrobial protection. Rough-in and fit-out kits and a D82 fixing pack are included. Flush buttons are sold separately.
Specifications
| Product code | 766350W |
| Pan type | Easy Height, wall faced, back inlet, CleanFlush rimless |
| Pan height | 435mm |
| Pan projection | 615mm |
| Cistern | Invisi Series II concealed cistern |
| Trap | Universal (S or P trap), Uni-Orbital Connector, up to 50mm radius adjustment |
| Installation | In-wall, in-duct, in-ceiling or undercounter |
| Flush | 4.5L full / 3L half (3.5L average) |
| WELS rating | 4 Star |
| Material | Vitreous china |
| Seat | Liano double flap, soft close, quick release, GermGard |
| Colour | White |
| Included | Pan, Invisi Series II cistern, seat, Adjustable Flushpipe, Uni-Orbital Connector, rough-in and fit-out kits, D82 fixing pack |
| Not included | Flush buttons, fixed flushpipe 237222 for undercounter installs |
Features
- Easy Height 435mm pan for extra comfort and easier sit-to-stand
- AS1428.1 ambulant compliant, backrest not required for ambulant applications
- CleanFlush rimless pan for a whole bowl clean with no hidden rim
- Concealed Invisi Series II cistern for a clean wall-faced finish
- Universal trap pan with Uni-Orbital Connector for S or P trap set-outs
- Liano soft close, quick release double flap seat with GermGard
- WELS 4 Star, 4.5L/3L dual flush
Compliance
AS1428.1 ambulant compliant (not AS1428.1 accessible). Suitable for independent living applications. WELS 4 Star rated.
