CliniMix® CP-BS Duct Mtd Thermostatic Progressive Shower Mixer with Anti-Ligature Handle - Electroni

Save $273.60
Galvin EngineeringSKU: WM-TMVPMSCSIDE

Sale price$2,006.40 Regular price$2,280.00

  • Fast shipping Australia wide
  • Leaves our warehouse within 1-2 business days
  • Australian based customer service
  • Peace of mind returns

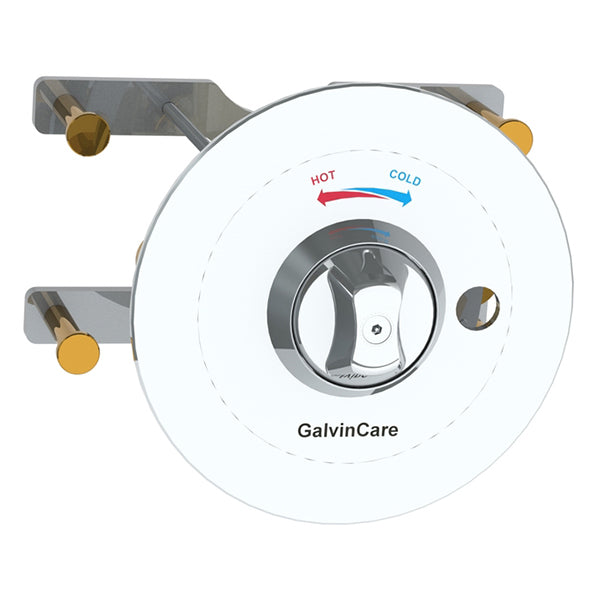

New state of the art Galvin CliniMix® Duct Mtd Thermostatic Progressive Shower Mixer with Anti-Ligature Handle for shower application. Specifically designed for mental health and health care facilities featuring an easy to operate temperature control and option to be set to a thermostatically controlled temperature of 48°C maximum. Suitable for high and low pressure systems, reliable, water conserving and cost-effective. Designed to allow for an electronic piezo activation button fitted, and once activated, flow and temperature will commence where it was last set at. Temperature can be adjusted via the anti-ligature handle if needed.

Note: does not contain activation button or electronic system required to operate shower. Contact our specialist sales team for activation, electronic controller and valve options.


  • This progressive shower mixer provides state of the art features to comply with healthcare requirements
  • Enables water to be mixed closer to the point of discharge, minimising stagnant warm water which provides ideal conditions for legionella bacteria to grow
  • Smooth internal components and body reduces scale build-up and bacteria growth
  • Maximum temperature limiter fitted for protection from accidental scalding
  • Clean smooth lines facilitate fast and easy cleaning
  • All servicing and commissioning can be done without removing the device
  • Easy access isolators help minimise time spent on commissioning and maintenance
  • Designed to provide stable mixed temperature with rapid shut down in the event of cold or hot water supply failure
  • Approved to: TMV3, Department of Health performance specification D08

Technical Information

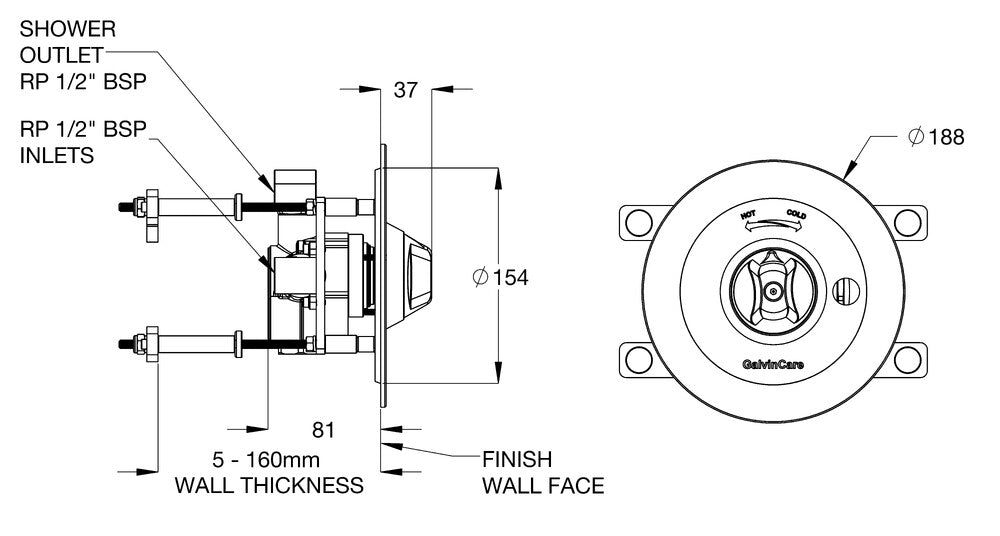

  • Inlet: 1/2" BSP - Female
  • Outlet: 1/2" BSP - Female
  • Headwork: Thermostatic Mixing Valve (TMV)
  • Working Pressure Range (bar): 0.5 Min to 5.0 Max
  • Hot Temperature Supply Range (°C): 55 Min - 65 Max
  • Cold Temperature Supply Range (°C): 5 Min - 65 Max
  • Operating Working Pressure (bar): 0.5 - 5.0
  • Maximium Outlet Pressure (bar): 5.0
  • Permitted Supply Pressure Variation: 10:1
  • Minimum Temperature Differential (between supply and the outlet temperature) (°C): 10°C
  • MIxed Water Temperature (°C): 41°C
  • Minimum Flow Rate for Stable Outlet Temperature: 6 LPM
  • Maximum Thermostatic Temperature (°C): 43°C
  • Finish: Chrome
