CliniMix® CP-BS Lead Safe™ Duct Mtd Thermostatic Progressive Shower Mixer with Anti-Ligature Handle

Save $323.02
Galvin EngineeringSKU: 100.51.76.02

Price:
Sale price$2,368.78 Regular price$2,691.80

Description

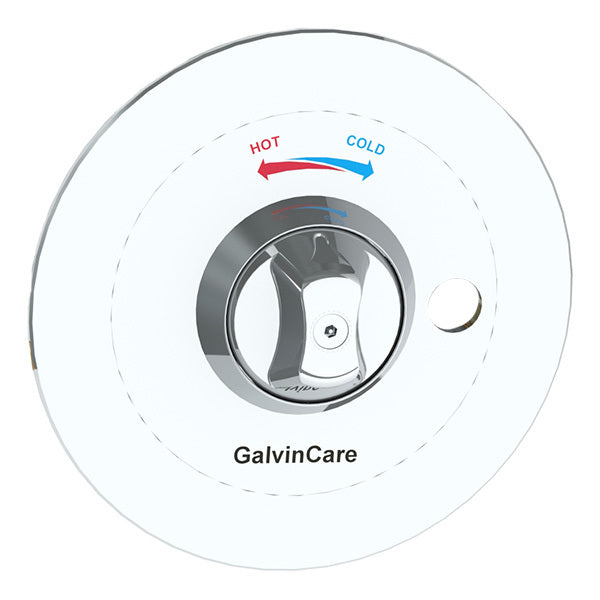

New state of the art Galvin CliniMix® Lead Safe™ Duct Mtd Thermostatic Progressive Shower Mixer with Anti-Ligature Handle for shower application. Specifically designed for mental health and health care facilities featuring an easy to operate temperature control and option to be set to a thermostatically controlled temperature of 48°C maximum. Suitable for high and low pressure systems, reliable CliniMix® Lead Safe™ Duct Mtd Thermostatic Progressive Shower Mixer with Anti-Ligature Handle is water conserving and cost-effective. Designed to allow for an electronic piezo activation button fitted, and once activated, flow and temperature will commence where it was last set at. Temperature can be adjusted via the GalvinCare® handle if needed.

Note: does not contain activation button or electronic system required to operate shower. Contact our specialist sales team for activation, electronic controller and valve options.

Features

  • Manufactured using high quality DZR solid brass with less than 0.25% lead content*
  • Enables water to be mixed closer to the point of discharge, minimising stagnant warm water which provides ideal condition of Legionella bacteria to grow
  • Smooth internal components and body, reduces scaled build-up and bacteria growth
  • Maximum temperature limiter fitted for protection against accidental scalding
  • Clean smooth lines which facilitates fast and easy cleaning and combines well with our current ranges of healthcare taps
  • All servicing and commissioning can be done without removing the device. Easy access isolators, help minimise time spent on commissioning and maintenance
  • Designed to provide stabled mixed temperature with rapid shut down in the event of cold or hot water supply failure

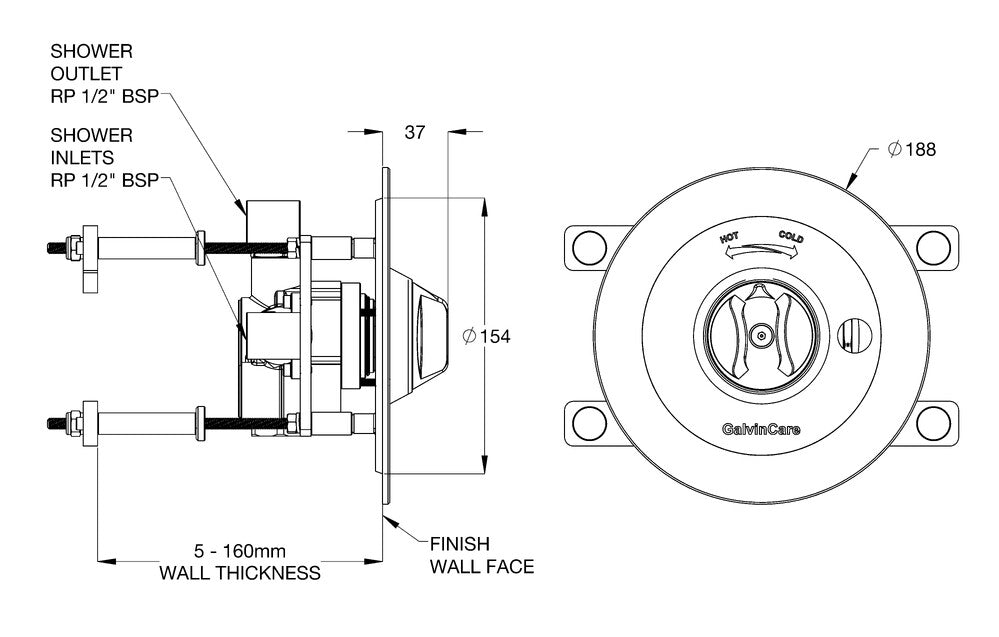

Technical Information

  • WaterMark: AS 4032.4 Lic. WMKA21989
  • Inlet: 1/2" BSP - Female
  • Outlet: 1/2" BSP - Female
  • Headwork: Thermostatic Mixing Valve
  • Working Pressure Range (kPa): 50 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 80 Max
  • Construction: Lead Safe™ DZR Brass*
  • Finish: Chrome
