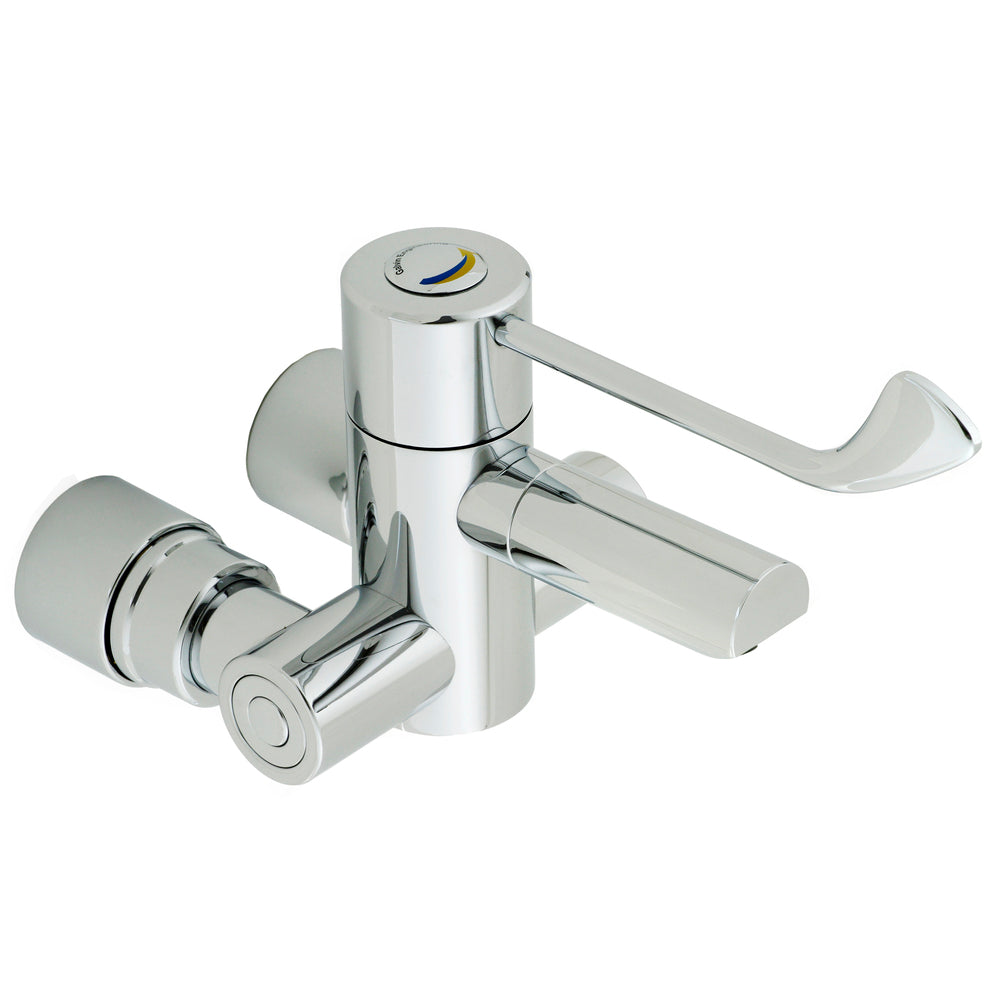

CliniMix® CP-BS Wall Mounted Thermostatic Progressive Basin Mixer - Lever 75-105

Save $285.59
Galvin EngineeringSKU: WM-TMVPMW-90

Price:
Sale price$2,094.31 Regular price$2,379.90

Description

The CliniMix® Wall Mounted Thermostatic Progressive Basin Lever Mixer. This new design for use in medical or nursing procedures provides state of the art features to comply with the latest healthcare requirements. The single lever operates on/off temperature controls for straightforward operation, simplifying hand wash procedures and the long arm is operated with elbows to avoid hand contact. Suitable for high and low-pressure systems it can set to deliver a thermostatically controlled water temperature of 48ºC maximum.

Features

  • The first Australian approved progressive mixer with an inbuilt thermal disinfection capability to minimise bacteria build-up
  • Has a unique thermal disinfection bypass feature
  • Enables water to be mixed closer to the point of discharge reducing Legionella risk by minimising warm water stagnation
  • Smooth internal and external components to decrease harbouring of bacteria
  • Features a hygienic laminar flow outlet
  • NSW Health approved
  • All servicing and commissioning can be done without penetrating the wall cavity or removing the device. Easy to access isolators helps to minimise the time of commissioning and maintenance

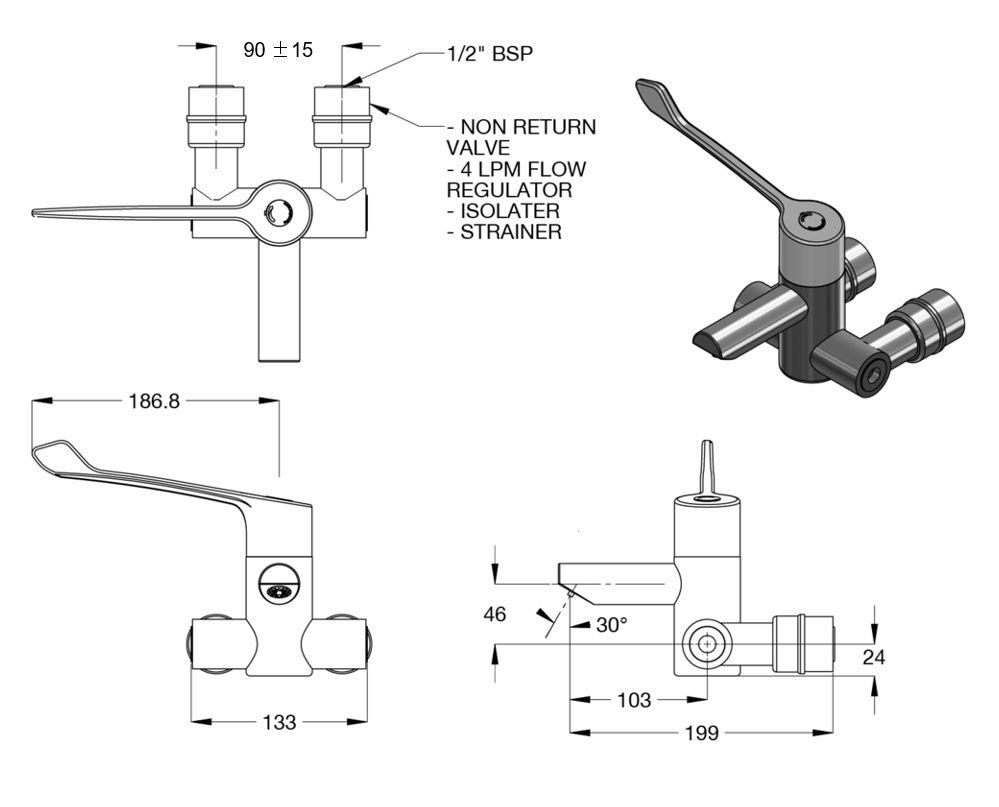

Technical Information

  • WaterMark: AS 4032.4 Lic. WMKA21989
  • Inlet: 1/2" BSP - Female
  • Outlet: Flow Straightener
  • Headwork: Thermostatic Mixing Valve (TMV)
  • Working Pressure Range (kPa): 20 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 85 Max
  • Adjustable Temperature (°C): 35 Min - 45 Max
  • Maximum Outlet Pressure (kPa): 500
  • Permitted Supply Pressure Variation: 10:1
  • Operating Thermostatic Temp. Range* (°C): Full cold - 45
  • Factory Set Thermostatic Temp. Range (°C): 39 - 41
  • Maximum Thermostatic Temperature: (°C): 48
  • Nominal Flow Rate (LPM): 8
  • Construction: Brass
  • Finish: Chrome

Each brand and product has different warranty timelines andconditions. Please click here for further information https://www.plumbersupplies.com.au/pages/returnsor email us at sales@plumbersupplies and we will be in touch.
