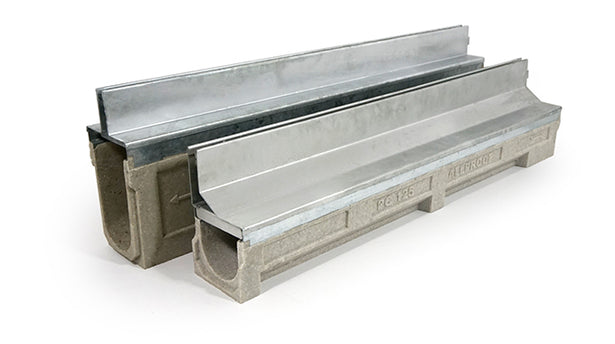

Polymer concrete trench drain topped with a discreet slot attachment for courtyards, pool surrounds, patios and paved areas where a full-width grate isn't wanted. The polymer concrete channel gives low permeability and good chemical resistance, with only a narrow slot visible at the finished surface.
Features:
- Polymer concrete channel, 100mm clear opening, supplied in 1m lengths
- 15mm slot opening in galvanised steel or 316 stainless steel
- Centre slot or offset slot configurations
- Channel depths 75, 125, 175 and 225mm, with sloped joiner channels to build fall
- Matching slot end caps available (left and right for offset slot)
- Suits PC Clamp for installation without haunching
SKU: PC75GCSL, PC75-125GCSL, PC125GCSL, PC125-175GCSL, PC175GCSL, PC175-225GCSL, PC225GCSL, PC75GOSL, PC75-125GOSL, PC125GOSL, PC125-175GOSL, PC175GOSL, PC175-225GOSL, PC225GOSL, PC75SSCSL, PC125SSCSL, PC175SSCSL, PC225SSCSL, PC75SSOSL, PC125SSOSL, PC175SSOSL, PC225SSOSL, 125GCSL EC, 125GOSL EC L, 125GOSL EC R, 125CSL EC, 125OSL EC L, 125OSL EC R
