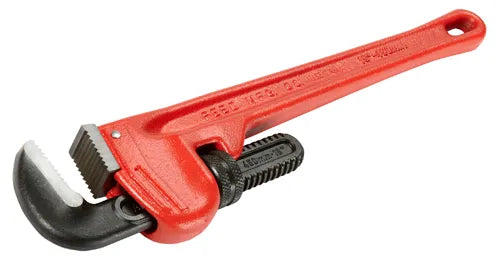

Reed Pipe Wrenches are the most popular pipe wrench style. High-tensile ductile iron handle and hardened, alloy steel parts are designed to withstand the heaviest demands. New production tooling for the hook jaws produces sharper teeth on the 18", 24", and 36" models. This change yields a still better grip for hard oil field pipe.
Catalog No | Item Code | Pipe Capacity | Length | Weight | |||
Inches Nominal | Actual Ø mm | in | mm | lbs | kg | ||
RW8 | 02120 | 1/8-1 | 10 - 33 | 8 | 203 | 1.0 | 0.5 |
RW10 | 01230 | 1/8-1 1/2 | 10 - 48 | 10 | 254 | 1.9 | 0.9 |
RW12 | 01240 | 1/8 - 2 | 10 - 60 | 12 | 305 | 2.9 | 1.3 |
RW14 | 02150 | 1/4 - 2 | 14 - 63 | 14 | 356 | 3.6 | 1.6 |
RW18 | 02160 | 1/4 - 2 1/2 | 14 - 75 | 18 | 457 | 6.1 | 2.8 |
RW24 | 02170 | 1/4 - 3 | 14 - 90 | 24 | 610 | 9.9 | 4.5 |
RW36 | 02180 | 1/4 - 5 | 14 - 141 | 36 | 914 | 15.6 | 7.1 |
RW48 | 02190 | 1 1/2 - 6 | 48 - 168 | 48 | 1219 | 32.7 | 14.9 |
