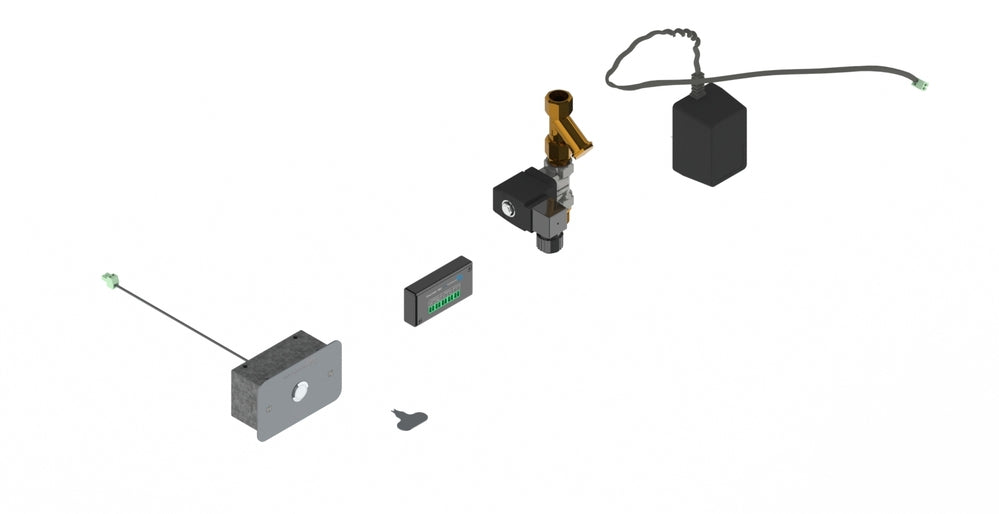

Safe-Cell® Electronic Single Temperature Basin Assembly with Controller (Concealed)

Save $166.07
Galvin EngineeringSKU: TZ-FLOWTBAS1IN

Price:
Sale price$1,217.83 Regular price$1,383.90

  • Fast shipping Australia wide
  • Leaves our warehouse within 1-2 business days
  • Australian based customer service
  • Peace of mind returns

Description

The Galvin Safe-Cell® Single Temperature Basin Assembly with Controller (Concealed) provides the complete anti-vandal, anti-ligature solution. The unique electronic valve assembly with an illuminated cell call button is specifically designed for prisons, mental health facilities, and other custodial establishments.

Exposed Plate

  • 4mm thick stainless steel, with 4mm radius corners
  • Designed for front fixing
  • Australian Made; therefore, spare parts and support are available locally, reducing maintenance and downtime costs

Controller Requirements

  • Control box and cell call activations must be mounted within 3 metres of the supply valve
  • A 220 - 240V 50Hz 10 amp general purpose outlet must be supplied within 1 metre of the control box
  • All plumbing must comply with AS/NZS 3500

Basin Function

  • Pressing the illuminated cell call button activates the basin. Once activated the water will flow for the factory preset time of 15 seconds or until deactivated by pressing the button again

Run Time Settings

  • The factory preset run time is 15 seconds but it can be adjusted from 5 up to 45 seconds in 5-second increments
  • Option of both cold and warm supplies (contact us for details)

General

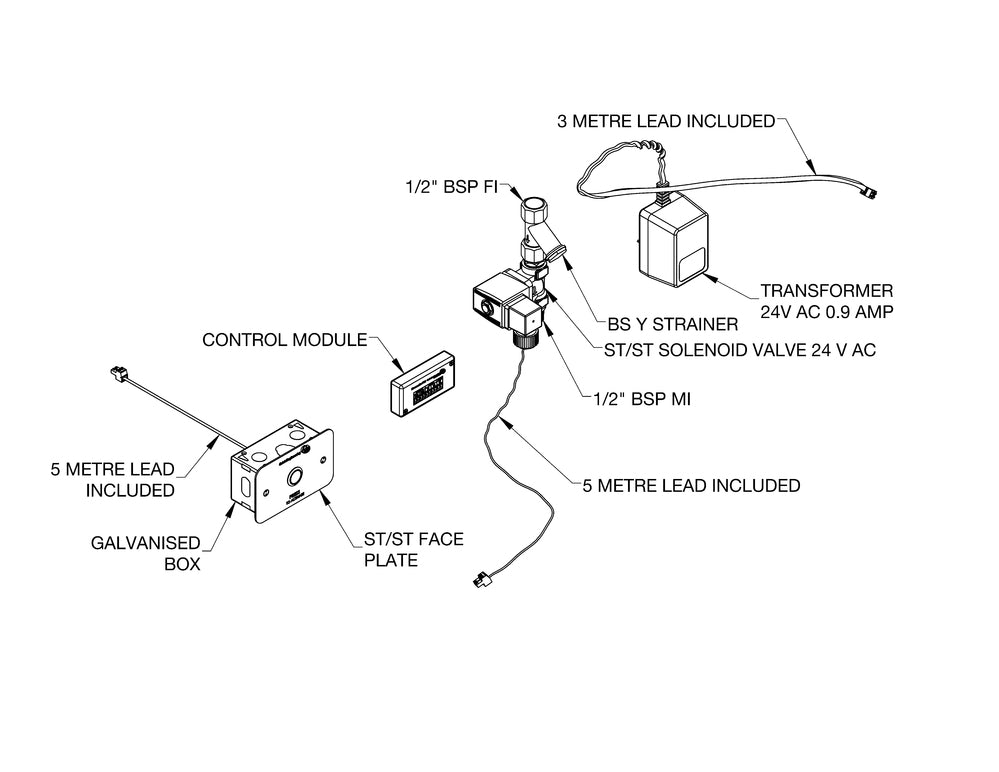

  • Cabling is supplied for the cell call buttons, solenoids and transformer
  • Solenoid Valves: Basin unit comes with DR brass water hammer resistant 24V AC solenoids
  • Controller: Safe-Cell® controller is a 24V AC electronic control system allowing connection of up to 5 button inputs and 5 solenoids. Depending on the settings programmed the solenoids will open for a specific time once the appropriate button is pressed

Technical Information

  • Inlet: 1/2" BSP - Female
  • Outlet: 1/2" BSP - Male
  • Headwork: Solenoid
  • Activation: Push Button
  • Working Pressure Range (kPa): 100 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 90 Max
  • Finish: Brushed Stainless Steel

In the absence of a legal or industry definition of anti-ligature or ligature resistant products, when we use these terms, we are referring to products that are designed and manufactured with the intention of reducing the risk of ligature attachment to the product(s). Galvin Engineering Pty Ltd will always endeavour to design and test our anti-ligature product(s) to reduce the risk of product ligature attachment that may result in serious injury or death. Whilst all reasonable measures are taken at the time of design, the anti-ligature design of the products are not intended to and will not:
a. Replace protective measures that need to be taken in the specific circumstances of usage;
b. Substitute the need for supervision of those who may be at risk;
c. Protect and or prevent those at risk against any self-harm instances that may occur when installed; and
d. Protect and or prevent injury when the risks where unknown to us at the time of the design of the product(s).
Galvin Engineering Pty Ltd does not offer and does not represent or warrant that any product(s) for sale are ligature-free. Therefore, Galvin Engineering will not be liable for any claims, loss, or damages arising from ligature attachment on our products. It is the purchaser's responsibility to ensure that products purchased and installed are suitable for the environments in which they are installed, and suitable supervision and protective measures are in place to protect those at risk.
