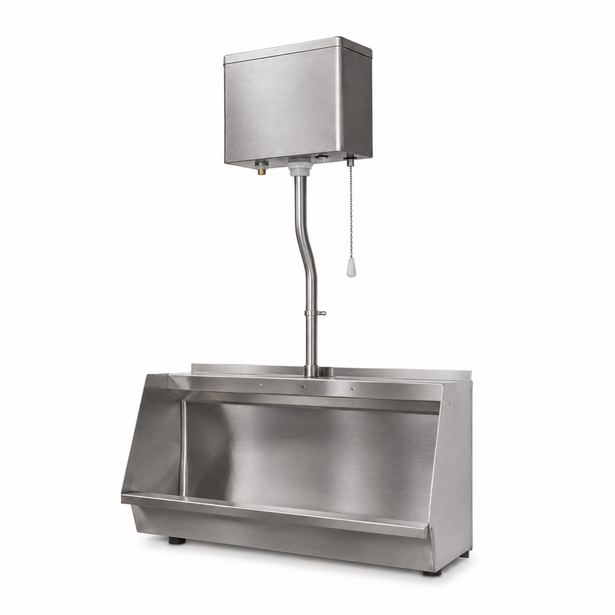

This complete wall hung urinal kit is built from 304 grade stainless steel and supplied as a full off-the-shelf system, removing the need to source and match individual components. Each kit includes the wall hung urinal trough, a pull chain cistern, sparge adaptor, offset flushpipe, and a domed urinal grate, making it a straightforward drop-in solution for commercial washrooms, schools, clubs, and other high-traffic public facilities.
The range runs from 600mm through to 1800mm in single-trough configurations to suit washrooms of varying size, with a 2400mm option available for larger multi-user installations. The 2400mm kit is supplied with two pull chain cisterns, two sparge adaptors, and two offset flushpipes to properly service the extended trough length, along with a single domed urinal grate. Stainless steel construction throughout provides corrosion resistance and durability well suited to heavy commercial use and washdown cleaning regimes.
Specifications
| Length | SKU | Cisterns Included | Flushpipes Included |
|---|---|---|---|
| 600mm | M-SWHUR-600C-PCKIT | 1x AB-CIS-PC | 1x M-FP600-C |
| 900mm | M-SWHUR-900C-PCKIT | 1x AB-CIS-PC | 1x M-FP600-C |
| 1200mm | M-SWHUR-1200C-PCKIT | 1x AB-CIS-PC | 1x M-FP600-C |
| 1500mm | M-SWHUR-1500C-PCKIT | 1x AB-CIS-PC | 1x M-FP600-C |
| 1800mm | M-SWHUR-1800C-PCKIT | 1x AB-CIS-PC | 1x M-FP600-C |
| 2400mm | M-SWHUR-2400C-PCKIT | 2x AB-CIS-PC | 2x M-FP600-C |
(All kits include 1x URNNW-2 sparge adaptor per cistern and 1x URNG domed urinal grate.)
Features
- 304 grade stainless steel construction for corrosion resistance and durability
- Complete kit — trough, cistern, sparge adaptor, flushpipe, and grate included
- Pull chain cistern operation
- Domed urinal grate for hygiene and debris protection
- Six length options from 600mm to 2400mm to suit washroom size and user capacity
- Suited to commercial, education, and public facility applications
