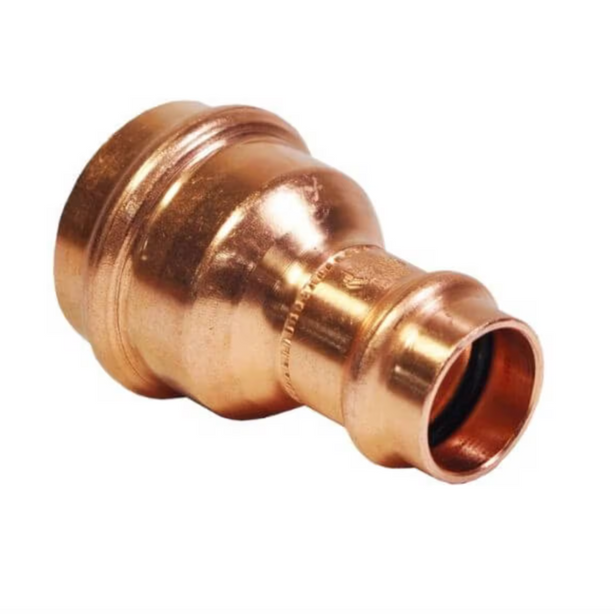

The copper press reducing coupling joins two different sizes of copper tube with a press socket on each end. Use it to step a line down from main to branch size, or to tie new press work into existing pipework of a different size.
Sizes are listed large x small. The range runs from 18mm x 15mm and 20mm x 18mm transition sizes through to 100mm x 80mm. To step down straight off another fitting without a piece of tube, use the male x female reducer.
Specifications
| Connection | Press x Press (reducing) |
| Sizes | 20mm x 15mm, 18mm x 15mm, 20mm x 18mm, 25mm x 15mm, 25mm x 20mm, 32mm x 15mm, 32mm x 20mm, 32mm x 25mm, 40mm x 20mm, 40mm x 25mm, 40mm x 32mm, 50mm x 20mm, 50mm x 25mm, 50mm x 32mm, 50mm x 40mm, 65mm x 25mm, 65mm x 32mm, 65mm x 40mm, 65mm x 50mm, 80mm x 40mm, 80mm x 50mm, 80mm x 65mm, 100mm x 50mm, 100mm x 65mm, 100mm x 80mm |
| Material | Copper |
| Max working pressure | 1600 kPa |
| Max temperature | 120°C |
| Press profile | V-profile |
| Tube | AS 1432 Type A or B copper (hard drawn, half hard or annealed) |
| Leak detection | Unpressed joints show on pressure test |
| Standard | WaterMark certified, manufactured to AS 3688 |
| Warranty | 25 years |
Features
- V-profile press socket, suits V-profile jaws on standard press tools
- Flame-free jointing, no hot work permit, flux or solder
- Sizes listed large x small
- Unpressed joints show up on pressure test
- Rated to 1600 kPa
- Suits AS 1432 Type A and Type B copper tube
- WaterMark certified, manufactured to AS 3688
- Standard Press 25-year warranty
- Box of 10 and box of 100 discounts apply
Compliance
WaterMark certified and manufactured to AS 3688 for copper press-fit systems, for use with AS 1432 Type A or B copper tube. Install to AS/NZS 3500 and the press tool manufacturer's instructions, and press only with V-profile jaws. For solar collector circuits and other high temperature hot water lines, use the Standard Press solar copper press range with the red FKM high temperature seal.
