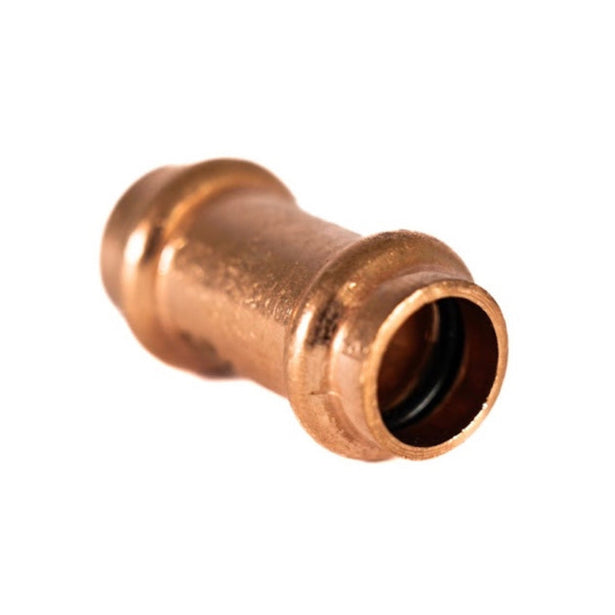

The copper press slip coupling has no internal tube stop, so it can slide fully along the pipe. That makes it the fitting for repairs on existing copper: cut out the damaged or leaking section, slide the coupling back over one tube, line it up across the gap and press both ends.
It is also the way to close in between two fixed points where there is no movement in the pipework to push a standard coupling on. Mark the insertion depth on both tubes before pressing so the coupling sits centred over the joint.
Specifications
| Connection | Press x Press, no tube stop |
| Sizes | 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 80mm, 100mm |
| Material | Copper |
| Max working pressure | 1600 kPa |
| Max temperature | 120°C |
| Press profile | V-profile |
| Tube | AS 1432 Type A or B copper (hard drawn, half hard or annealed) |
| Leak detection | Unpressed joints show on pressure test |
| Standard | WaterMark certified, manufactured to AS 3688 |
| Warranty | 25 years |
Features
- V-profile press socket, suits V-profile jaws on standard press tools
- Flame-free jointing, no hot work permit, flux or solder
- No tube stop, slides fully along the tube for repairs
- Mark insertion depth on both tubes before pressing
- Unpressed joints show up on pressure test
- Rated to 1600 kPa
- Suits AS 1432 Type A and Type B copper tube
- WaterMark certified, manufactured to AS 3688
- Standard Press 25-year warranty
- Box of 10 and box of 100 discounts apply
Compliance
WaterMark certified and manufactured to AS 3688 for copper press-fit systems, for use with AS 1432 Type A or B copper tube. Install to AS/NZS 3500 and the press tool manufacturer's instructions, and press only with V-profile jaws. For solar collector circuits and other high temperature hot water lines, use the Standard Press solar copper press range with the red FKM high temperature seal.
