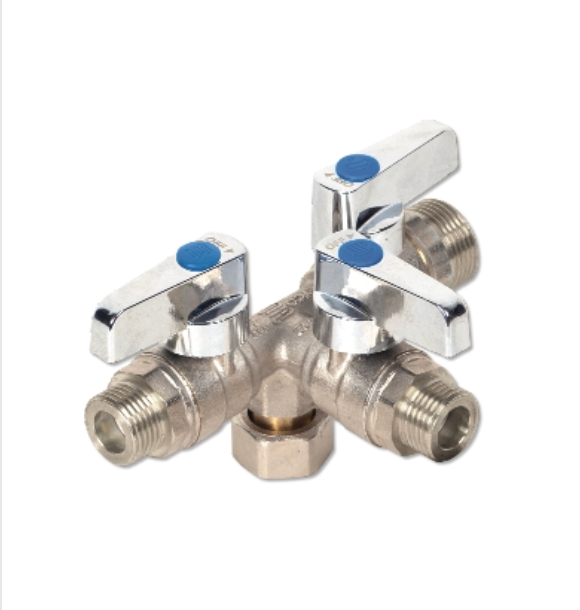

A DZR brass 3-way ball valve manifold WaterMark approved to WMTS-012 (Licence WM-022988). Featuring a ½” swivel nut water inlet connector and three male threaded outlets, this manifold is perfect for connecting multiple home appliances such as dishwashers, kitchen & laundry taps, washing machines, drinking water systems and refrigerators to a single water source. Appliances can be individually connected or disconnected without having to shut down the entire line.
Inlet: Swivel nut ISO 228/1 ½” threaded connection
Outlets: ISO 228/1 ½” and ¾” male threaded connections
Neoperl integral non-return check valves
Flow control: on/off only, not intended for throttling
Temperature range: -10°C to 90°C
Max. pressure: 1600 kPa
Must be installed according to accompanying installation guide
Outlets: ISO 228/1 ½” and ¾” male threaded connections
Neoperl integral non-return check valves
Flow control: on/off only, not intended for throttling
Temperature range: -10°C to 90°C
Max. pressure: 1600 kPa
Must be installed according to accompanying installation guide
