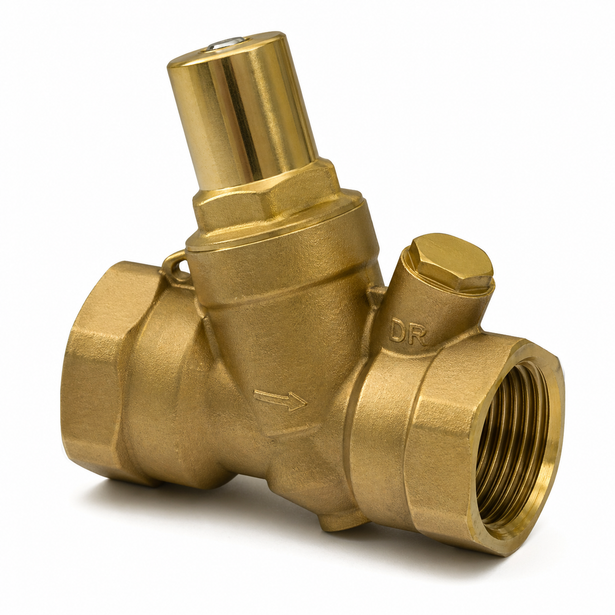

The AVG PRV15F-LF is a 15mm inline pressure reducing valve from the Australian Valve Group — a Watts brand — built for residential and light commercial plumbing systems. It reduces and stabilises incoming mains pressure to a safe working level, protecting hot water systems, tapware, pipe joints, washers and appliance hoses from the damage high pressure causes over time.
Factory set at 500kPa in line with AS/NZS 3500.1, and fully adjustable from 250-650kPa via the top screw (clockwise to increase, anticlockwise to reduce). Three gauge test points are cast into the body for upstream and downstream pressure monitoring, with a tagging eye for service identification.
The membrane design with a 316 stainless steel seat gives more reliable long-term pressure control than piston-style limiting valves, which are prone to clogging. An internal stainless steel mesh strainer protects the valve from debris, and it can be installed horizontally or vertically — including below ground in an approved protective box.
Thread-compatible with most existing installations, making it a straightforward replacement for Reliance, Tomson, AW, Nefa, Reflex, APO and similar valves with no pipe modification required.
Features
- 15mm inline female x female connection
- Adjustable pressure range: 250-650kPa
- Factory set at 500kPa (AS/NZS 3500.1 compliant)
- Triple gauge test points for upstream/downstream monitoring
- 316 stainless steel seat and internal mesh strainer
- DR brass body, spindle and components
- EPDM70 seals, stainless steel spring
- Compact — installs horizontally or vertically
- Tagging eye cast into body
- WaterMark certified — AS1357.2, Lic 2639
- Lead free construction
Performance Specifications
- Pressure setting range: 250-650kPa
- Factory setting: 500kPa
- Max inlet pressure: 1600kPa
- Max working temperature: 80°C
- Flow rate @ 700kPa dynamic, 500kPa set pressure: 60 L/min
- Flow rate @ 700kPa dynamic, 250kPa set pressure: 22 L/min
Dimensions: 68mm (A) x 22mm (B) x 78mm (C) x 34mm (D)
SKU: PRV15F-LF | Brand: AVG — Australian Valve Group, a Watts Water Technologies brand.
