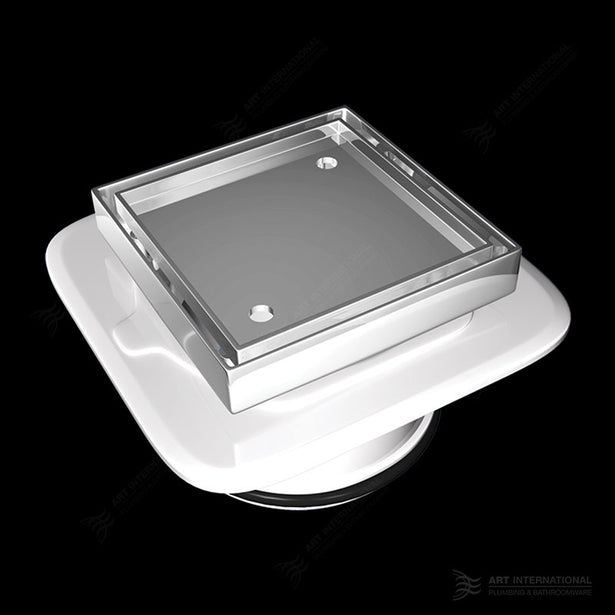

The Megaflex™ Bermuda takes the tile insert Bermuda grate and adds Art's Megaflex™ leak control flange, which bonds into the waterproofing membrane for a watertight connection between the floor waste and the wet area waterproofing.
Available with 100mm (11203), 80mm (11204) and 50mm (11205) outlets and a 100 x 100mm square top in ten finishes.
Specifications
| Top size | 100 x 100mm square |
| Outlet | 100mm, 80mm or 50mm |
| Tile insert | Brass |
| Base | Brass |
| Megaflex™ base | ABS |
| Strainer | Stainless steel |
| Finishes | Chrome, Satin Chrome, Gold, Polished Brass, Brushed Nickel, Gun Metal Grey, Brushed Gold, Matt Black, Brushed Gun Metal Grey, Titanium Grey |
| Brand | Art Plumbing & Bathroomware (Australian designed) |
Features
- Integrated Megaflex™ leak control flange for the waterproofing membrane
- Tile insert grate sits flush with the floor tiles
- Construction dust cover plate
- Acoustic dampeners stop grate rattle
- Ten finishes
Compliance
Refer to the manufacturer's specification sheet for WaterMark licence and applicable standards before installation. Installation, drainage and waterproofing must be carried out by a licensed tradesperson in line with the relevant Australian Standards and local requirements.
