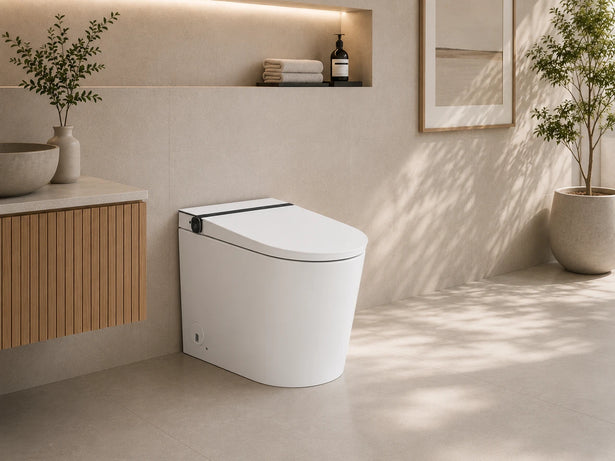

A floor standing intelligent toilet with an integrated bidet, built as a single tankless unit so there is no in-wall or close-coupled cistern to install. The pan, wash system, seat and flush are all driven from the one body, which keeps the footprint compact and the profile clean against the wall. Suited to residential ensuites and premium bathroom fit-outs where the client wants full bidet functionality without a concealed cistern frame.
Hands-free operation is handled by a motion-activated foot sensor at the base, which opens and closes the lid and seat and triggers the flush. Before each use the bowl is misted to reduce waste adhesion, and a plasma sterilisation cycle runs on the bowl after use. Rear and front warm-water wash with oscillating spray is fully adjustable for temperature, spray volume and nozzle position, and the seat is heated with an adjustable warm-air dryer.
Installs to an S-trap set-out of 95 to 110mm using the supplied Vario pan connector, or a 180mm P-trap set-out (P-trap connector not supplied). Requires a dedicated 220-240V power point with RCD protection. The bidet seat has an integral air gap for backflow protection; check with the local authority whether an additional RPZD is required on the supply.
Specifications
| Code | 42573A-W3 |
| Type | Floor standing, tankless intelligent toilet with integrated bidet |
| Colour | White |
| Flush volume | 4.5L full / 3L half |
| Flushing | Revolution 360 degree flush |
| S-trap set-out | 95-110mm (Vario pan connector supplied) |
| P-trap set-out | 180mm (P-trap connector not supplied) |
| Inlet pressure | 80kPa min / 500kPa max |
| Inlet water temperature | 3-35 degrees C |
| Power | 220-240V, 50Hz, RCD protection required |
| IP rating | IPX4 |
| Maximum user weight | 150kg |
| Backflow | Integral air gap in bidet seat (AS 2845.2 per manufacturer spec sheet) |
Features
- Tankless one-piece design, no in-wall cistern required
- Motion-activated foot sensor for automatic lid, seat and flush
- Pre-use bowl mist to reduce waste adhesion
- Warm-water rear and front wash with oscillating spray
- Adjustable water temperature, spray volume and nozzle position
- Heated seat with adjustable warm-air dryer
- Plasma bowl sterilisation cycle
- Automatic deodorisation, night light and energy-saving mode
- Anti-bacterial seat and wand
- Remote control included
Included
- Intelligent toilet and remote control
- Angle valve with removable filter
- Vario pan connector (S-trap)
- Braided stainless steel supply hoses
- Floor fixing hardware
Installation must be carried out by a licensed plumber in accordance with AS/NZS 3500, with electrical connection by a licensed electrician.
