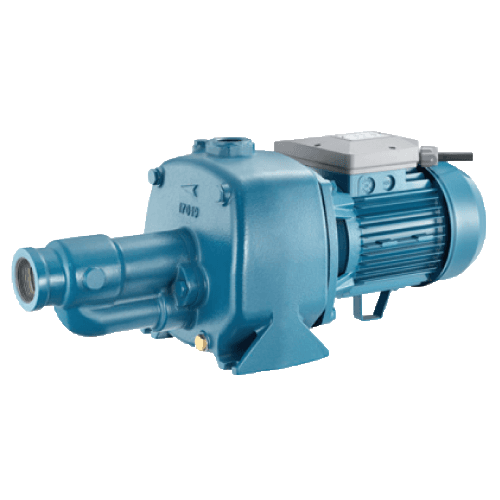

The Hyjet CAB series is a self-priming shallow well jet pump made in Italy by Pentax for pressure boosting, irrigation, washdown and drawing from wells, tanks, rivers and dams. It primes automatically and performs reliably with aerated suction water.
Select the configuration you need from the options above. The models covered by this listing are:
| SKU | Option | Description |
|---|---|---|
| CAB200-1 | Pump Only | 1.5kW 240V 120 L/min Cast Iron Shallow Well Pump |
| CAB200-1-PC | With HPC22 Pressure Controller | 1.5kW 240V 120 L/min Cast Iron Shallow Well Pump with HPC22 Pressure Controller |
| CAB200-1-PT18 | With Pressure Switch & 18L Tank | 1.5kW 240V 120 L/min Cast Iron Shallow Well Pump with Pressure switch & 18L Pressure Tank |
Specifications
| Brand | Hyjet |
| Motor power | 1.5kW |
| Supply | 240V single phase |
| Max flow | 120 L/min |
| Pump body and motor bracket | Cast iron |
| Impeller | Noryl or brass |
| Mechanical seal | Ceramic / graphite |
| Motor shaft | Stainless steel AISI 303 |
| Liquid temperature | 0 to 50°C |
| Max operating pressure | 8 bar |
| Motor | 2-pole induction, thermal protection, Class F, IP44 |
| Made in | Italy |
Features
- Self-priming, handles aerated water
- Integrates with pressure tanks
- Available as pump only, with HPC22 pressure controller, or with pressure switch and 18L tank
Notes
- The manufacturer datasheet with performance curves and dimensions is available under Downloads.
Need help sizing a pump? Call our team on 0414 040 452 or email sales@plumbersupplies.com.au.
