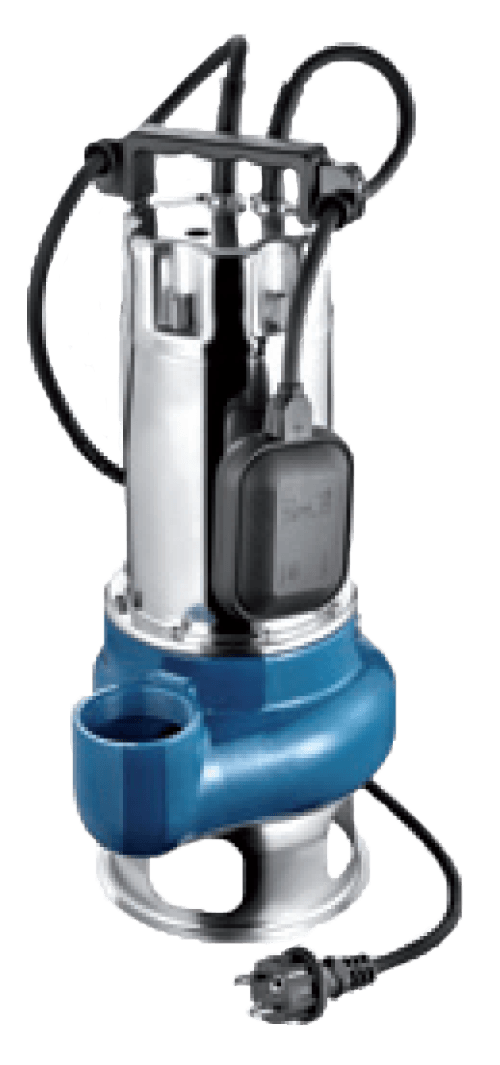

The Hyjet DB series is a double channel submersible pump for wastewater and dirty water with solids, for sumps, pits and drainage stations.
Select the configuration you need from the options above. The models covered by this listing are:
| SKU | Option | Description |
|---|---|---|
| DB100-1 | Manual | 1350 Watt 240V 600 L/min 11m Head Double Channel Submersible Pump |
| DB100-1A | Automatic (Float Switch) | 1350 Watt 240V 600 L/min 11m Head Double Channel Submersible Pump with Float Switch |
Specifications
| Brand | Hyjet |
| Motor power | 1350W |
| Supply | 240V single phase |
| Max flow | 600 L/min |
| Head | 11m max |
| Pump body | Cast iron |
| Shell, motor cover, impeller | Stainless steel |
| Motor shaft | AISI 430 |
| Seal | Double mechanical with oil barrier, silicon carbide pump side |
| Max immersion | 5m |
| Liquid temperature | 0 to 40°C |
| Motor | 240V 50Hz 2-pole, thermal protection, Class F, IP68 |
| Cable | 10m H07RNF |
| Made in | Italy |
Features
- Double channel impeller for solids
- Manual or float switch version
Notes
- The manufacturer datasheet with performance curves and dimensions is available under Downloads.
Need help sizing a pump? Call our team on 0414 040 452 or email sales@plumbersupplies.com.au.
