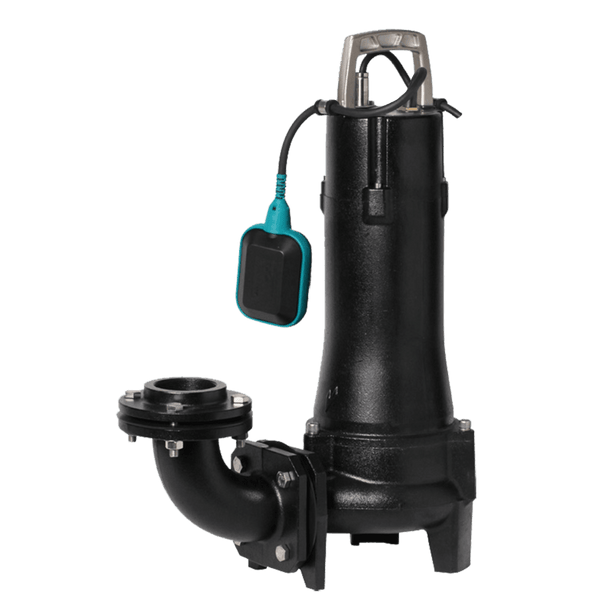

The Hyjet HWV series is a heavy-duty vortex submersible pump for wastewater and drainage in municipal, commercial, domestic and industrial applications. The semi-open vortex impeller gives non-clog operation and passes soft or fibrous solids up to 70% of the discharge size.
Select the configuration you need from the options above. The models covered by this listing are:
| SKU | Option | Description |
|---|---|---|
| HWV65-15-1 | Single Phase 240V | 240V 1.5 kW 65mm Manual Submersible Vortex Pump |
| HWV65-15-3 | Three Phase 415V | 415V 1.5 kW 65mm Manual Submersible Vortex Pump |
Specifications
| Brand | Hyjet |
| Motor power | 1.5kW |
| Body | HT200 cast iron |
| Shaft | Stainless steel |
| Seals | Double silicon / carbon mechanical |
| Bearings | Heavy-duty ball bearings |
| Liquid temperature | 0 to 40°C |
| Max immersion | 5m |
| Motor | 50Hz 2-pole, Class F, IPX8, thermal overload |
Features
- Non-clog semi-open vortex impeller
- Guide rail kits available for all models (HGRK series)
- Replaceable cable with epoxy resin-filled sleeve
Notes
- The manufacturer datasheet with performance curves and dimensions is available under Downloads.
- Electrical connection of hard-wired and three phase equipment must be carried out by a licensed electrician.
Need help sizing a pump? Call our team on 0414 040 452 or email sales@plumbersupplies.com.au.
