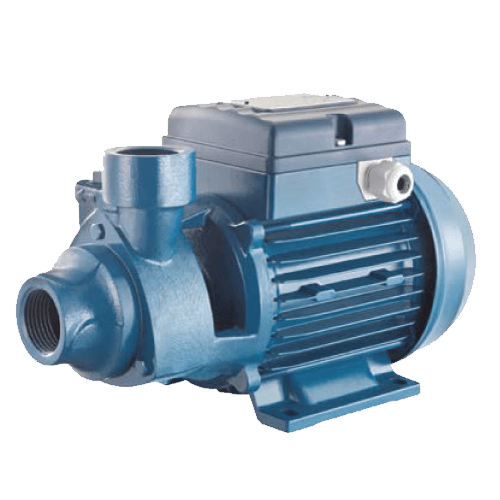

The Hyjet PM series is a compact peripheral impeller pump for small household water systems and light industrial duties, delivering strong pressure for its power draw.
Select the configuration you need from the options above. The models covered by this listing are:
| SKU | Option | Description |
|---|---|---|
| PM45 | Pump Only | 0.37kW 240V Peripheral Pump with 2.5m Cable & 3 Pin Plug |
| PM45-PC | With Pressure Controller | 0.37kW 240V Peripheral Pump with Electronic Pressure Controller 2.2 Bar Start Pressure |
Specifications
| Brand | Hyjet |
| Motor power | 0.37kW |
| Supply | 240V single phase |
| Pump body | Cast iron |
| Impeller | Brass |
| Mechanical seal | Ceramic / graphite |
| Motor shaft | Stainless steel AISI 416 |
| Liquid temperature | 0 to 90°C |
| Max operating pressure | 6 bar (PM45) / 8 bar (PM80) |
| Motor | 2-pole induction, thermal protection, Class F, IP44 |
| Made in | Italy |
Features
- Front-mounted suction inlet
- High pressure output for low power draw
- Supplied with 2.5m cable and 3-pin plug
- PM45-PC option pre-fitted with a Hyjet electronic pressure controller (2.2 bar start)
Notes
- The manufacturer datasheet with performance curves and dimensions is available under Downloads.
