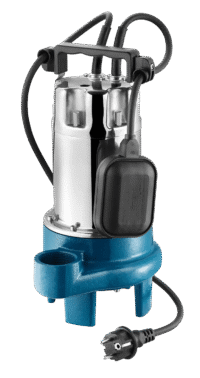

The Hyjet DTR series is a heavy-duty grinder submersible pump for sewage, effluent and solids-laden water in homes, commercial premises and farms, including pressure sewer and lift station duty.
Select the configuration you need from the options above. The models covered by this listing are:
| SKU | Option | Description |
|---|---|---|
| DTR101-1A | Single Phase 240V / Automatic (Float Switch) | 1200 Watt 240V 220 L/min 19m Head Sewage Grinder Submersible Pump - with Float Switch |
| DTR101-1 | Single Phase 240V / Manual | 1200 Watt 240V 220 L/min 19m Head Sewage Grinder Submersible Pump - Manual |
| DTR101-3 | Three Phase 415V / Manual | 1200 Watt 415V 3PH 220 L/min 19m Head Sewage Grinder Submersible Pump - Manual |
Specifications
| Brand | Hyjet |
| Motor power | 1200W |
| Max flow | 220 L/min |
| Head | 19m max |
| Pump body | Cast iron |
| Grinder | Treated stainless steel |
| Seal | Double seal with oil barrier, silicon carbide pump side |
| Motor shaft | Stainless steel AISI 430 |
| Max immersion | 5m |
| Liquid temperature | 0 to 40°C |
| Motor | 2-pole, Class F, IPX8 |
| Cable | 10m H07RN8F |
| Made in | Italy |
Features
- Grinder system macerates solids for small-bore discharge
- Manual or float switch version, single or three phase
Notes
- The manufacturer datasheet with performance curves and dimensions is available under Downloads.
- Electrical connection of hard-wired and three phase equipment must be carried out by a licensed electrician.
