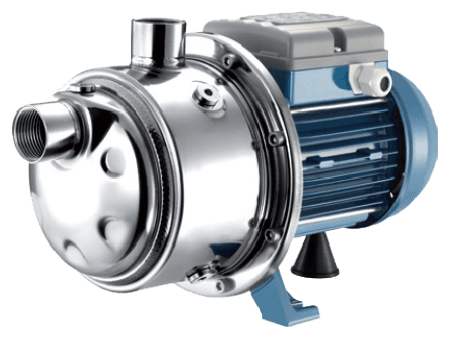

The Hyjet HM series is a stainless steel horizontal multistage pump for water supply and pressure boosting in residential, commercial and light agricultural settings, including tank-fed and multi-storey homes, rainwater harvesting, irrigation, wash bays and heating and cooling systems.
Select the configuration you need from the options above. The models covered by this listing are:
| SKU | Option | Description |
|---|---|---|
| HM3-5 | Pump Only | 0.75 kW 240V SS304 80 L/min Horizontal Multistage Pump |
| HM3-5-PC | With Pressure Controller | 0.75 kW 240V SS304 80 L/min Horizontal Multistage Pressure Pump |
Specifications
| Brand | Hyjet |
| Motor power | 0.75kW |
| Supply | 240V single phase |
| Max flow | 80 L/min |
| Pump body and impellers | Stainless steel AISI 304 |
| Motor bracket | Aluminium |
| Motor shaft | Stainless steel AISI 303 |
| Mechanical seal | Ceramic / graphite (up to 6 impellers), graphite / silicon carbide (7 or more) |
| Liquid temperature | 0 to 110°C |
| Motor | 2-pole induction, 240V 50Hz, thermal protection, Class F, IP44 |
| Made in | Italy |
Features
- AISI 304 stainless steel hydraulics
- Available as pump only or as a pressure pump package with controller
- Suits clean, non-loaded water
Notes
- Maxijet lists this range as AS4020 certified for contact with potable water.
- The manufacturer datasheet with performance curves and dimensions is available under Downloads.
Need help sizing a pump? Call our team on 0414 040 452 or email sales@plumbersupplies.com.au.
