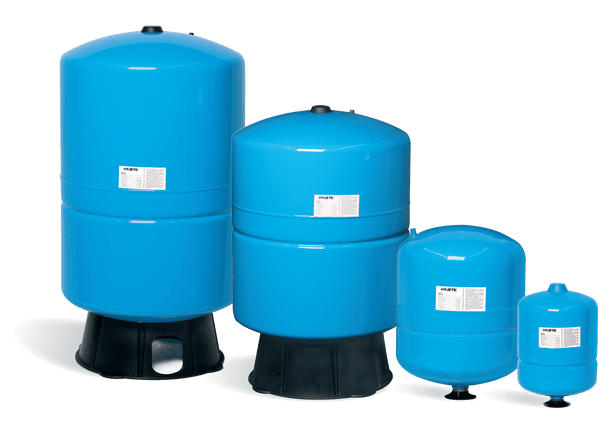

The Hyjet HPT is a vertical diaphragm pressure tank for stabilising pump booster systems, reducing pump cycling and water hammer, and absorbing thermal expansion.
Select the configuration you need from the options above. The models covered by this listing are:
| SKU | Option | Description |
|---|---|---|
| HPT02 | 2 Litre | 10 bar Pressure Tank Vertical 2 Ltr |
| HPT08 | 8 Litre | 10 bar Pressure Tank Vertical 8 Ltr |
| HPT18 | 18 Litre | 10 bar Pressure Tank Vertical 18 Ltr |
| HPT24 | 24 Litre | 10 bar Pressure Tank Vertical 24 Ltr |
| HPT60 | 60 Litre | 10 bar Pressure Tank Vertical 60 Ltr |
| HPT80 | 80 Litre | 10 bar Pressure Tank Vertical 80 Ltr |
| HPT100 | 100 Litre | 10 bar Pressure Tank Vertical 100 Ltr |
| HPT150 | 150 Litre | 10 bar Pressure Tank Vertical 150 Ltr |
Specifications
| Brand | Hyjet |
| Diaphragm | Potable grade butyl |
| Liner | Polypropylene, water does not contact steel |
| Connection | Stainless steel |
| Finish | Epoxy primer with two-part polyurethane |
| Air valve | Brass stem |
| Max pressure | 10 bar (150 psi) |
| Max temperature | 90°C |
Features
- Set pre-charge 20 kPa below cut-in for pressure switch systems
- For VSD or electronic controller systems, pre-charge to 65% of max system pressure
Notes
- The manufacturer datasheet with performance curves and dimensions is available under Downloads.
Need help sizing a pump? Call our team on 0414 040 452 or email sales@plumbersupplies.com.au.
