The Hyjet HCE series is a variable speed multistage pressure pump. A pressure transducer on the outlet lets the controller hold a set pressure, speeding up or slowing down with demand, for domestic supply, pressure boosting in larger buildings, irrigation and industrial process water.

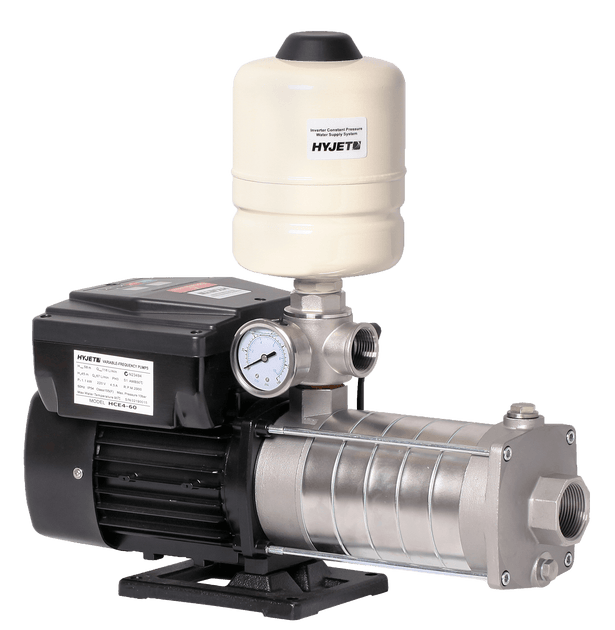

This listing is for model HCE4-60: 1100 watt 230V SS304 116 L/min VSD Horizontal Multistage Pump with 3 Ltr Pressure Tank.
Specifications
| Brand | Hyjet |
| Model | HCE4-60 |
| Motor power | 1100W |
| Supply | 230V single phase |
| Max flow | 116 L/min |
| Pump body, impellers, shaft | Stainless steel AISI 304 |
| Mechanical seal | Carbon / ceramic |
| Max ambient temperature | 40°C |
| Motor | 2-pole induction, IP55, Class F, thermal overload protection, continuous duty |
Features
- Constant pressure via variable speed drive
- Runs only at the speed needed for quiet, efficient operation
- Continuous duty rated
Notes
- Maxijet lists this range as AS4020 certified for contact with potable water.
- The manufacturer datasheet with performance curves and dimensions is available under Downloads.
- Electrical connection of hard-wired and three phase equipment must be carried out by a licensed electrician.
Need help sizing a pump? Call our team on 0414 040 452 or email sales@plumbersupplies.com.au.
