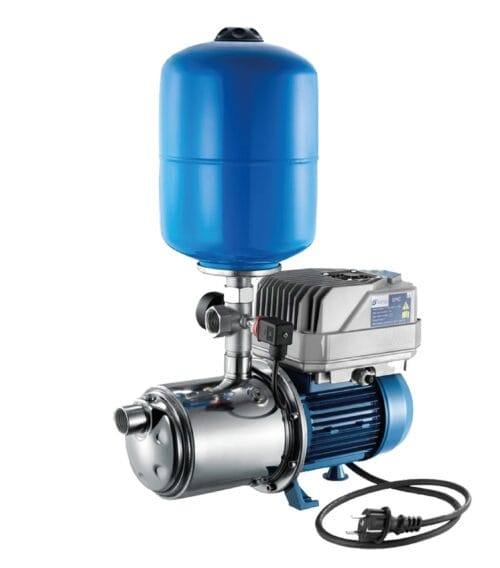

The Hyjet HM-E1 is a stainless steel horizontal multistage pump driven by the Italian-made E1 EPIC variable speed drive and supplied with an 8L pressure tank, for pressurising, irrigation, drinking water, water treatment, HVAC and washing systems.
This listing is for model HM7-5-E1: 1.85 kW 240V SS304 170 L/min Horizontal Multistage Pump with E1 VSD Controller and 8 Ltr Pressure Tank.
Specifications
| Brand | Hyjet |
| Model | HM7-5-E1 |
| Motor power | 1.85kW |
| Supply | 240V single phase |
| Max flow | 170 L/min |
| Pump body and impeller | Stainless steel AISI 304 |
| Mechanical seal | Ceramic / graphite |
| Liquid temperature | up to 110°C |
| Max operating pressure | 8.5 bar |
| Motor | 2-pole induction, thermal protection, Class F, IP44 |
| Made in | Italy |
Features
- E1 variable speed drive holds constant pressure
- Supplied with 8L pressure tank
- Clean, non-loaded fluids
Notes
- Maxijet lists this range as AS4020 certified for contact with potable water.
- The manufacturer datasheet with performance curves and dimensions is available under Downloads.
- Electrical connection of hard-wired and three phase equipment must be carried out by a licensed electrician.
Need help sizing a pump? Call our team on 0414 040 452 or email sales@plumbersupplies.com.au.
