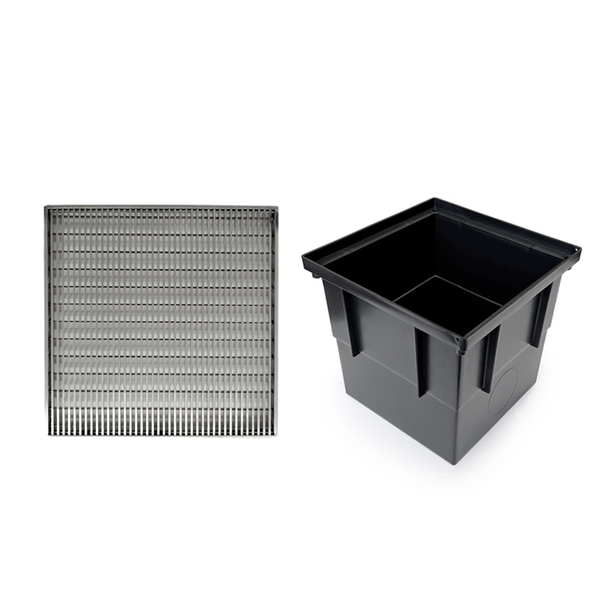

The Allproof Wedge Wire Drainage Pit is the ultimate choice for high-traffic pedestrian areas and coastal environments. Combining a sleek, industrial aesthetic with the high-performance properties of 316-grade stainless steel, this system provides a premium finish for modern architectural projects while ensuring rapid water evacuation.
Key Features:
-
Marine-Grade 316 Stainless Steel: Specifically selected for its superior resistance to corrosion and pitting, making it ideal for coastal regions or high-exposure outdoor areas.
-
Architectural Wedge Wire Design: Features a "V" shaped wire profile that maximizes water intake while preventing debris from clogging the system.
-
Certified Safety: Boasts an R11 slip resistance classification and a heelproof design, providing a safe, stable surface for high foot-traffic urban areas, malls, and public plazas.
-
Eco-Conscious Pit: The 350mm² pit is manufactured from 100% recycled plastic, aligning your project with sustainable building practices.
-
Fast Connectivity: Engineered with pre-marked 100mm pipe outlets and integrated rubber gaskets for a reliable, leak-free installation.
Technical Specifications:
-
Dimensions: 350mm x 350mm (Square)
-
Depth: 325mm
-
Grate Material: 316-Grade Stainless Steel (Electropolished finish available)
-
Open Area: Approximately 30% for high-volume hydraulic performance.
-
Slip Rating: R11 (AS 4586)
-
Outlet Size: 100mm (Pre-marked with seals)
Ideal Applications:
-
Coastal residential properties and beachfront promenades.
-
High-end commercial shopping precincts and pedestrian streets.
-
Modern public squares and urban streetscapes.
-
Level-entry transitions and high-traffic building entrances.
The Allproof 350mm² Wedge Wire Pit delivers a sophisticated, long-lasting drainage solution that enhances the safety and visual appeal of any premium landscape.
