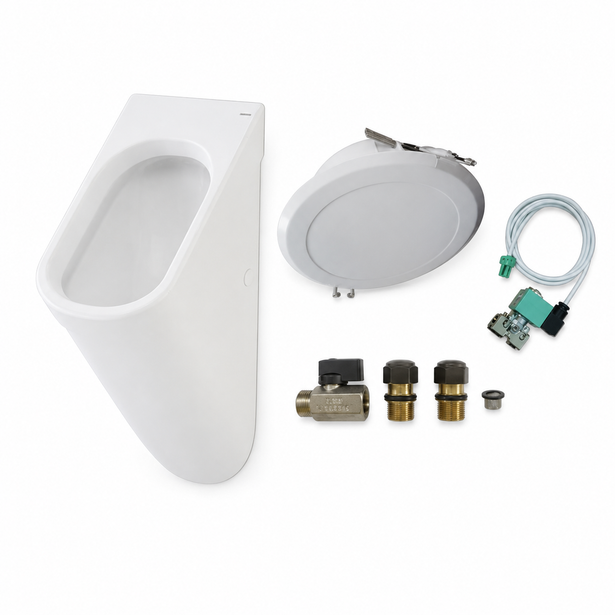

Save time and simplify ordering with this ready-to-install kit, pairing the Caroma Cube 0.8L Urinal with GermGard® with a Supaflush automatic sensor flushing system. Everything needed to fit out a hygienic, water-efficient, hands-free urinal is included in one line item — ideal for commercial fitouts, schools, hospitality venues, and public amenities.
The Cube Urinal is built from vitreous china in a clean, contemporary design with softened angles suited to general purpose commercial applications. WELS 6 Star rated, it uses just 0.8 litres per flush, making it one of the most water-efficient urinals available. The urinal is fitted with GermGard® — antimicrobial protection built into the glaze that kills a minimum of 99% of bacteria, reducing germ spread and making the pan easier to keep clean. It's configured with a P-trap and back water entry, and is suited to secure, anti-vandal installation.
Paired with the urinal is a Supaflush automatic urinal flushing system — an Australian made and owned, passive infrared sensor kit that delivers intelligent, adjustable flushing for maximum water savings without compromising hygiene. The sensor housing is rust-free ABS plastic in white, and flush timing is fully configurable via dip switch and push button controls: pre-flush duration of 2 seconds, flush duration adjustable from 3 to 300 seconds, flush delay options from 1 minute out to 6 hours, and a sanitary flush interval of 6, 12, 18 or 24 hours to keep the trap charged even when the urinal isn't in use.
This kit is available in four Supaflush configurations so you can match it to the site — ceiling or wall mount, and battery or mains powered. Battery units run on a large-capacity 9V battery with up to 10 years of memory retention if the battery is removed, while mains-powered units connect to a standard power supply for a fit-and-forget install.
Urinal features:
- Vitreous china, white finish
- WELS 6 Star rated, 0.8L per flush
- GermGard® antimicrobial glaze — kills min. 99% bacteria
- P-trap, back water entry
- Pan height 665mm, projection 345mm, width 260mm
- Pairs with Caroma Invisi Cistern or electronic flush valves
- Suits secure, anti-vandal installation
Supaflush sensor kit features:
- Australian made and owned
- Passive infrared sensor, rust-free ABS housing, white
- 9V battery powered (battery variants) or mains powered (mains variants)
- Up to 10 years memory retention (battery removed)
- Adjustable pre-flush (2 sec), flush duration (3–300 sec), flush delay (1 min–6 hrs) and sanitary flush interval (6/12/18/24 hrs)
- Ceiling or wall mount, 100mm mounting hole diameter
- Polarised plug-in valve connector for easy servicing
Kit variants available:
| Variant | Configuration |
|---|---|
| Ceiling Mount – Battery | SFCBK |
| Ceiling Mount – Mains | SFCMK |
| Wall Mount – Battery | SFWBK |
| Wall Mount – Mains | SFWMK |
