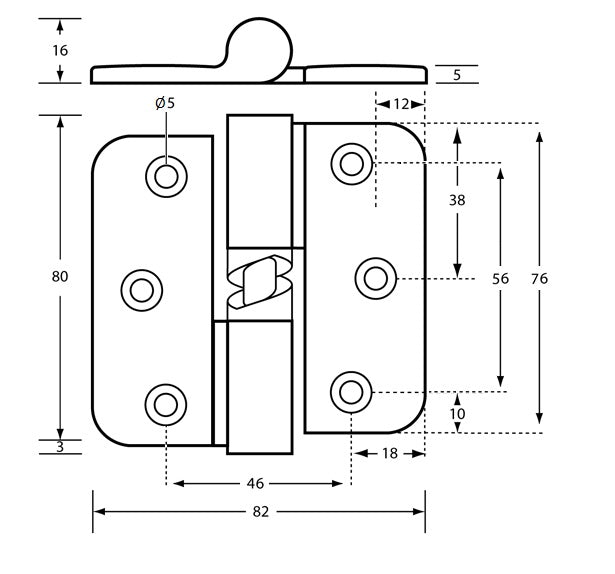

106C Gravity Hinge - Satin Chrome Plate

Save $2.00
MetlamSKU: 106C_SCP

Price:
Sale price$31.33 Regular price$33.33

Description

Specification

Material Diecast Zinc, Alloy ZP3
#304 Stainless Steel Shaft
Nylon Inserts
ABS Snap On Covers
Finish

Satin Chrome Plate

Also Available
106C_ANMB: Antimicrobial
106C_DESIGNER: Designer Black
106C_BCP: Bright Chrome Plate
106C_SNP: Satin Nickel Plate
106C_SPP: Satin Pearl Plate (Left Hand Only Available)
Specify 106C_LHHC: Left Hand, Hold Closed. Assists door to move towards Hold Closed position
106C_LHHO:
Left Hand, Hold Open. Assists door to move towards Hold Open position
106C_RHHC:
Right Hand, Hold Closed. Assists door to move towards Hold Closed position
106C_RHHO: Right Hand, Hold Open. Assists door to move towards Hold Open position
Mounting Concealed Screw Fix or Bolt Through
Minimum Hinge Clearance For Lift-Off Hinges  30mm
Features Gravity-assisted door opening/door closing with lift-off capability.
Load Rating 15Kg per hinge


For optimum performance -
2 hinges per door up to 30Kgs
For doors over 30Kg allow for 15Kg per hinge

Note: 3 Hinges per door is recommended to prevent door bowing

Note For Bolt Through use 106C_FACEPLATE Concealed Fix Face Plate (Available in Satin Chrome Plate, Bright Chrome Plate and Satin Nickel Plate)
  Note: All Hinges Are Available With Or Without Fixings.  Please Nominate Your Requirements At The Time Of Ordering.
Disclaimer Gravity hinges contain no mechanical components. The functionality of these hinges can vary depending on the environment.
When selecting this product, please view our Product Disclosure Statement in the Care and Maintenance Download below.

Each brand and product has different warranty timelines andconditions. Please click here for further information https://www.plumbersupplies.com.au/pages/returnsor email us at sales@plumbersupplies and we will be in touch.
