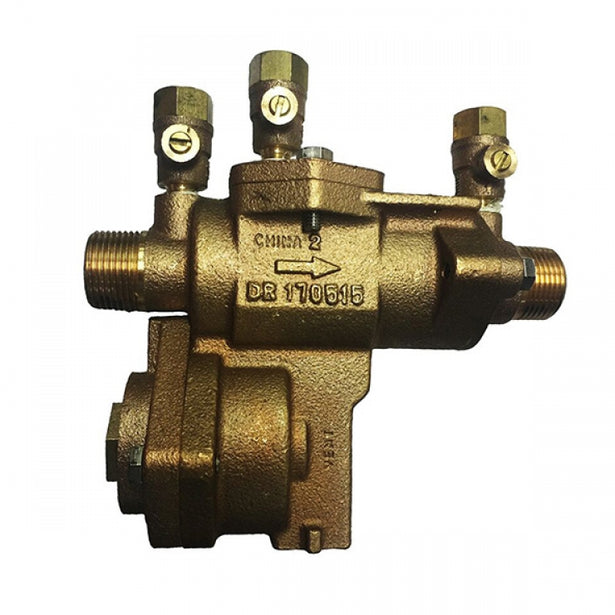

Febco LF860 lead free reduced pressure zone (RPZ) assembly supplied with an inlet strainer and lockable ball valves, ready to install for high hazard containment on potable water services. Lead free cast copper silicon alloy body with a pressure differential relief valve and top mounted test cocks for in-line testing.
Lockable ball valves let the device be isolated and secured for testing and maintenance. Install with an approved air gap below the relief valve discharge.
Features
- Complete assembly with strainer and lockable ball valves
- High hazard testable backflow prevention
- Lead free body (less than 0.25% lead on wetted surfaces)
- Top mounted test cocks
Specifications
| Brand | Febco |
| Sizes | DN15 - DN50 |
| Body | Lead free cast copper silicon alloy |
| Max working pressure | 1200 kPa |
| Temperature range | 0.5°C to 60°C |
| Testable | Yes |
| Device type | Reduced pressure zone assembly (RPZ) with strainer and lockable ball valves |
| Hazard rating | High |
Backflow prevention devices must be installed and commissioned by a licensed plumber and tested by an accredited backflow tester in line with local water authority requirements.
