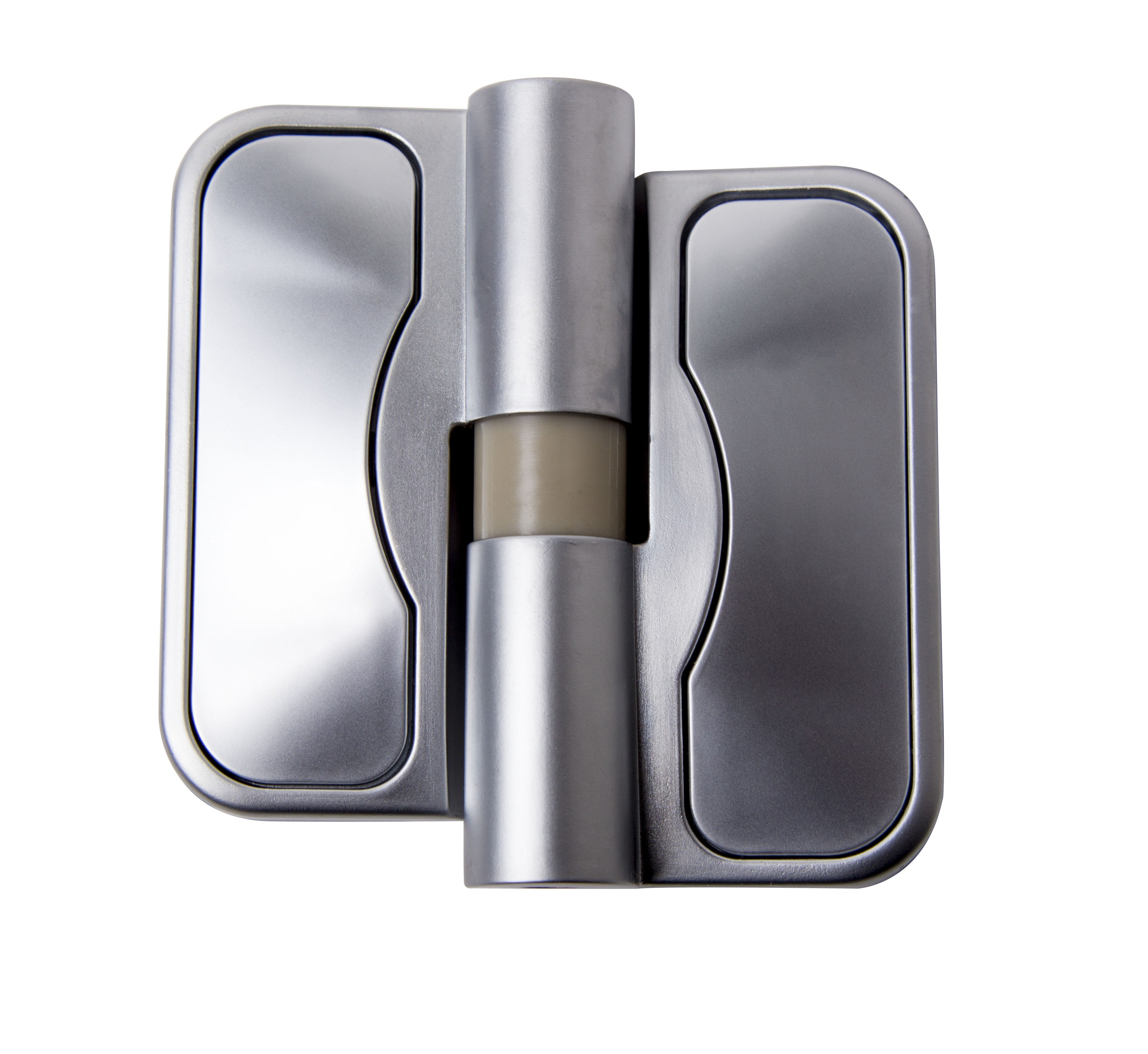

Gravity-assisted lift-off hinge for Moda series toilet cubicle doors.

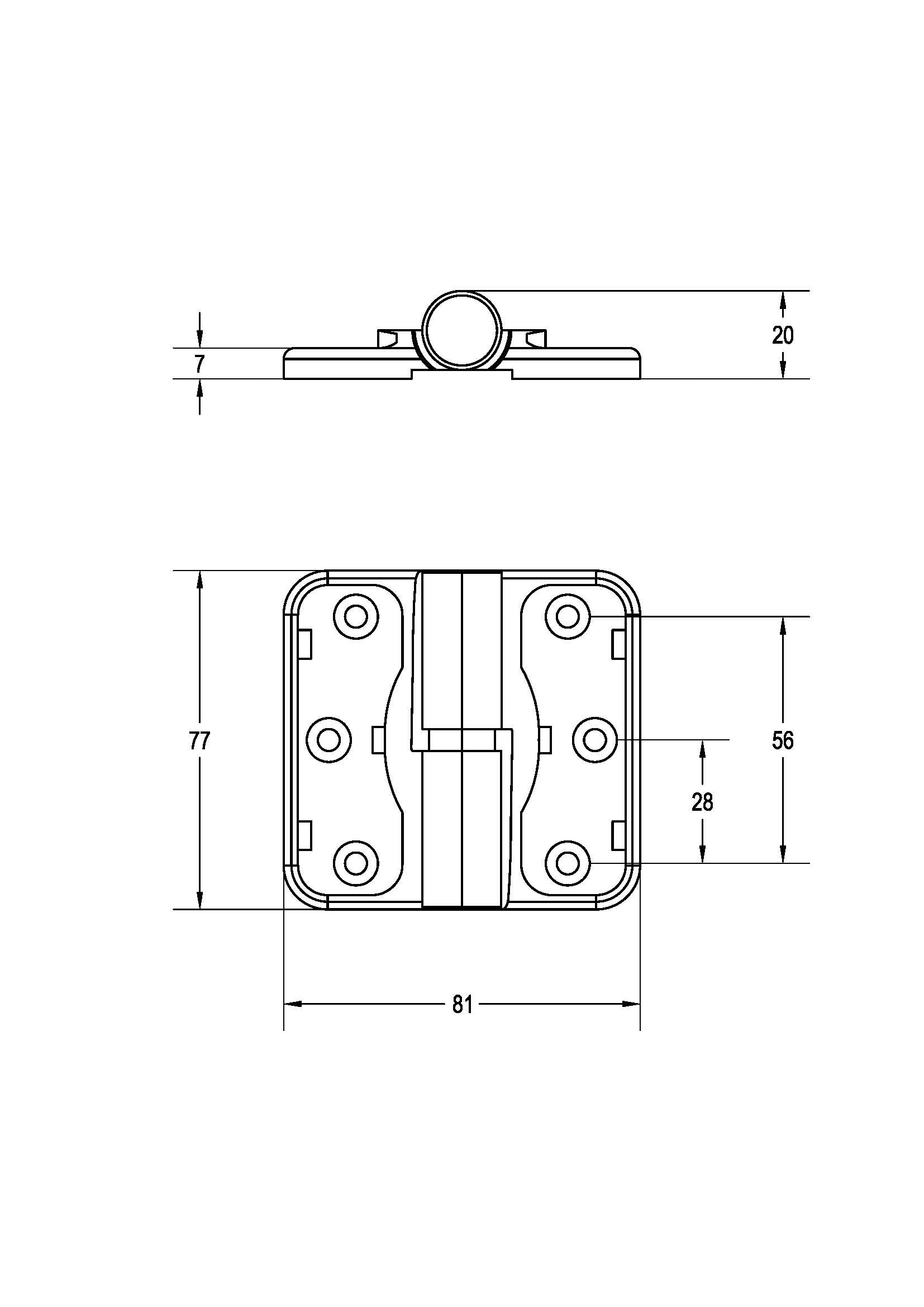

Made from diecast zinc alloy ZP3 with a brass shaft, nylon inserts and ABS snap-on covers, finished in satin chrome plate, this hinge mounts via concealed screw fix or bolt through. A stepped back plate and increased vertical nylon drop improve gravity movement, the nylons allow the door to move past 90° while still functioning correctly, and a nylon cover on the barrel keeps foreign substances off the pins for smoother operation. Hinge covers are interchangeable with the Moda spring hinge, and fixing holes align with Metlam's bolt-through faceplates.
The hold-open/hold-closed setting is reversible and it lifts off for easy removal. Each hinge is rated to 15kg; use two hinges per door up to 30kg and allow 15kg per hinge on heavier doors (three hinges per door is recommended to prevent bowing).
Features:
- Diecast zinc alloy ZP3 body, brass shaft, nylon inserts
- Satin chrome plate finish
- Reversible hold open/hold closed, lift-off capability
- Interchangeable covers with Moda spring hinge, aligns with bolt-through faceplates
- Concealed screw fix or bolt through mounting, 15kg load rating per hinge
SKU: MODA_GRAVITY_SCP
