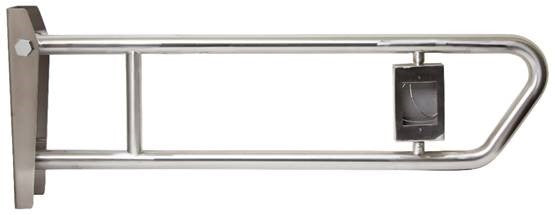

AS1428.1 universal pull-down grab rail with a swivelling nurse call button housing.
Built from 1.2mm #304 stainless steel tubing (32mmØ) with a 2.5mm formed #304 stainless steel mounting bracket, brace and nurse call housing, this unit is seamless welded and polished with a satin stainless steel finish. The nurse call housing swivels so the unit can be configured for either left hand or right hand use, and it folds up to store in an upright position when not in use.

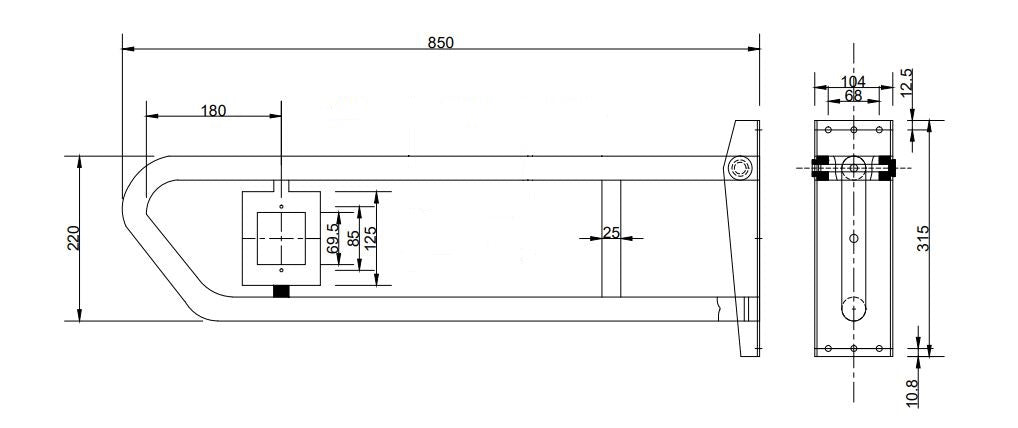

Overall dimensions are 850mmL x 315mmH, with a 215mm high grab rail section and a mounting bracket measuring 104mmW x 315mmH x 30-50mmD x 2.5mmT, fixed through 7 x 8mmØ mounting holes. Its construction meets AS1428.1 force requirements, able to withstand a force of 1100Nm applied at any position and in any direction without deformation. Note that the nurse call button itself is not included.
Features:
- 1.2mm #304 stainless steel tubing, 32mmØ, satin finish
- 2.5mm formed #304 stainless steel bracket, brace and swivelling nurse call housing
- Universal - configurable for left or right hand use
- Overall 850mmL x 315mmH, stores upright when folded
- 7 x 8mmØ mounting holes; nurse call button not included
- Meets AS1428.1 force requirements (1100Nm)
SKU: MLR50NCAL_UNIVERSAL
