AS1428.1 universal pull down grab rail with nurse call housing and integrated toilet roll holder.

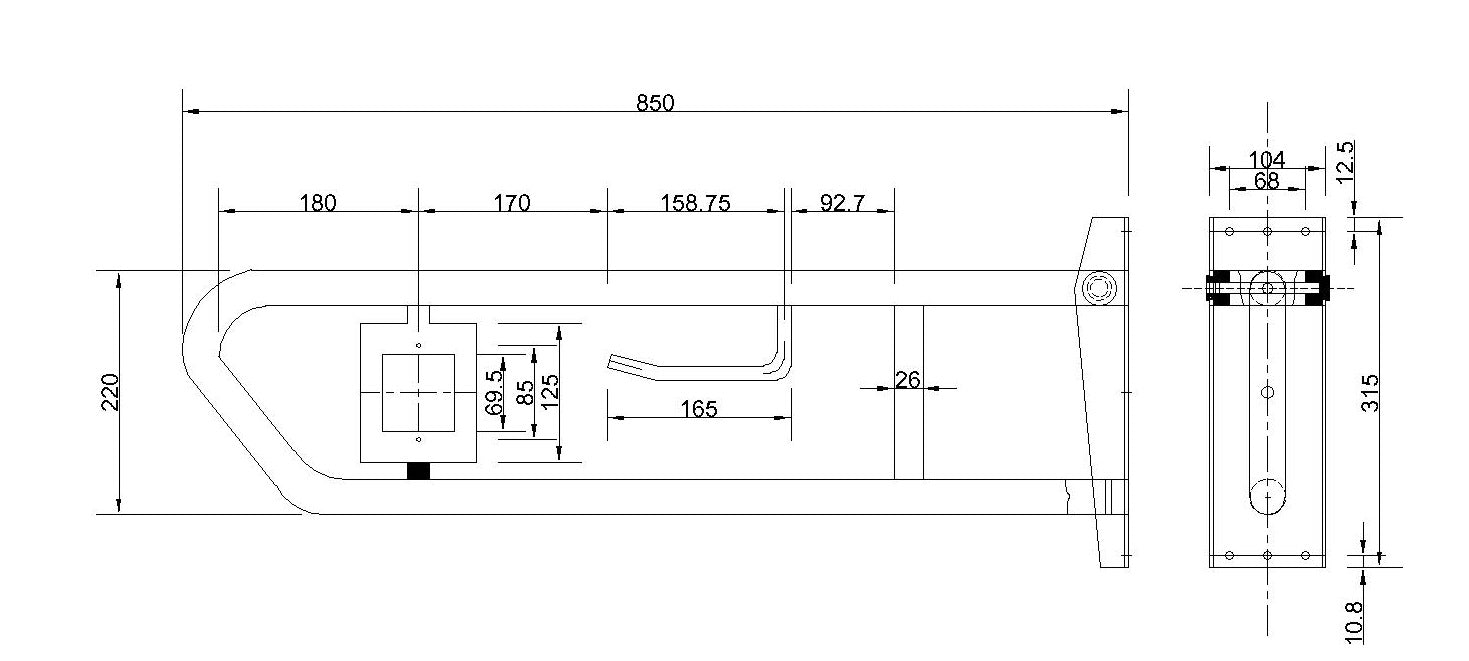

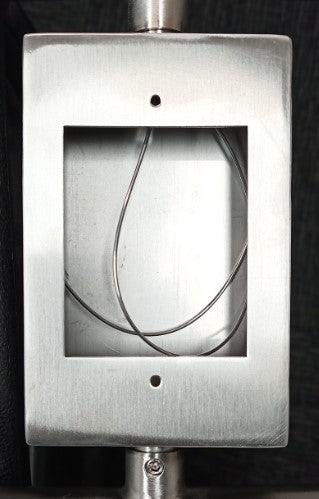

This 850mmL x 315mmH rail is built from 1.2mm #304 stainless steel tubing (32mmØ) with a 2.5mm formed #304 stainless steel mounting bracket, brace and nurse call housing, and a 12.5mmØ stainless steel toilet roll holder bar, all finished in satin stainless steel. The nurse call button housing swivels, making the unit universal and suitable for either a left hand or right hand pull down grab rail installation.
The grab rail measures 215mmH from outer edge to edge; the toilet roll holder is 168mmL, sitting 50mm below the underside of the upper rail. The mounting bracket is 104mmW x 315mmH x 30-50mmD x 2.5mmT with 7 mounting holes at 8mmØ. The unit is seamless welded and polished. Its materials and construction meet AS1428.1 force requirements, able to withstand a force of 1100Nm applied at any position and direction without deformation.
Features:
- 1.2mm #304 stainless steel tubing, 32mmØ
- Swivelling nurse call housing for universal LH/RH installation
- 12.5mmØ stainless steel toilet roll holder bar
- Satin stainless steel finish
- 850mmL x 315mmH overall
- Seamless welded and polished
- AS1428.1 compliant when installed per guidelines (1100Nm force rated)
SKU: MLR50NCAL_UNIVERSAL_TPH
