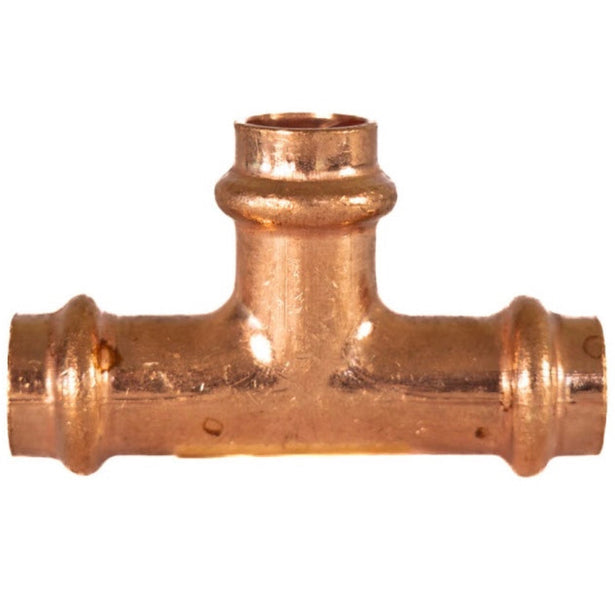

The copper press equal tee takes a branch off a copper line where the run and branch are the same size. Use it to split hot and cold mains to fixture groups, tee off to hose taps and appliances, or build manifolds in plant rooms.
All three sockets are the same diameter and pressed with the same jaw, so the fitting goes in fast without changing tooling. For a smaller branch off the run, use the copper press reducing tee.
Specifications
| Connection | Press x Press x Press |
| Sizes | 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 80mm, 100mm |
| Material | Copper |
| Max working pressure | 1600 kPa |
| Max temperature | 120°C |
| Press profile | V-profile |
| Tube | AS 1432 Type A or B copper (hard drawn, half hard or annealed) |
| Leak detection | Unpressed joints show on pressure test |
| Standard | WaterMark certified, manufactured to AS 3688 |
| Warranty | 25 years |
Features
- V-profile press socket, suits V-profile jaws on standard press tools
- Flame-free jointing, no hot work permit, flux or solder
- Unpressed joints show up on pressure test
- Rated to 1600 kPa
- Suits AS 1432 Type A and Type B copper tube
- WaterMark certified, manufactured to AS 3688
- Standard Press 25-year warranty
- Box of 10 and box of 100 discounts apply
Compliance
WaterMark certified and manufactured to AS 3688 for copper press-fit systems, for use with AS 1432 Type A or B copper tube. Install to AS/NZS 3500 and the press tool manufacturer's instructions, and press only with V-profile jaws. For solar collector circuits and other high temperature hot water lines, use the solar copper press version with the red FKM high temperature seal.
